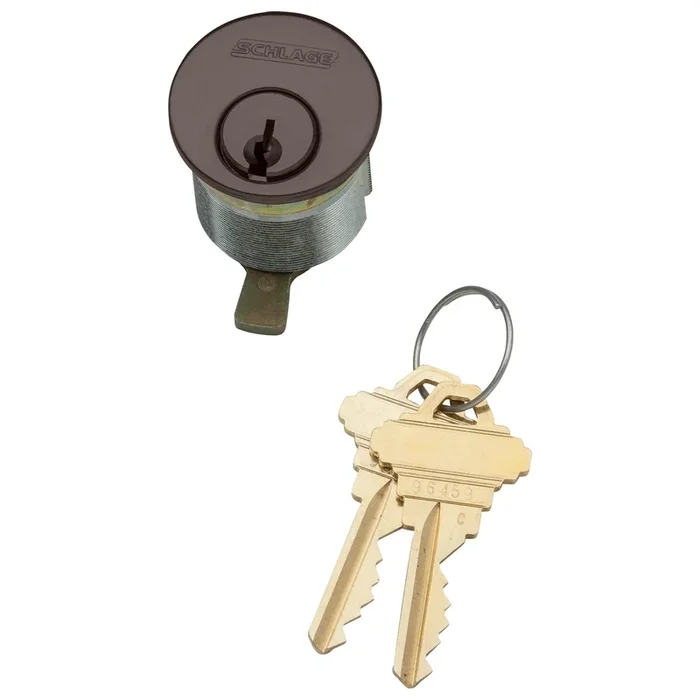

Schlage 26-021 C 112 613 1-1/2″ Mortise Cylinder with Straight Cam
Schlage 26-021 C 112 613 1-1/2″ Mortise Cylinder is designed to enhance security in commercial settings with its robust features and reliable performance. This 1-1/2 inch mortise cylinder is equipped with a 6-pin configuration and a C keyway, ensuring a high level of key control. Keyed different for added flexibility, it comes complete with two cut keys for immediate installation. The straight cam and compression spring design facilitate smooth operation, while the dark oxidized satin bronze oil rubbed finish adds a touch of elegance to any door. Being non-handed, this mortise cylinder can be easily installed on either side, accommodating various door configurations without hassle. Schlage’s key systems provide a layered security approach, allowing for a mix of standard and restricted solutions tailored to meet specific security needs. This innovative design not only addresses physical security but also simplifies administrative control, making it an ideal choice for facilities looking to optimize their security measures. With a limited three-year warranty, Schlage 26-021 stands out for its durability and reliability, ensuring your assets and personnel are well-protected. Upgrade your security today with this versatile mortise cylinder that combines functionality and style.
1-1/2″ Mortise Cyl, Strt Cam
1-1/2 In. Mortise Cylinder, 6-pin, C Keyway, Keyed Different, Straight Cam, Compression Spring, 2 Keys, Dark Oxidized Satin Bronze Oil Rubbed Finish, Non-handed
Schlage Key Systems deliver the right level of security everywhere you need it. Whether you are retrofitting with an updated key system or implementing a new key system, Schlage offers the flexibility and security you need throughout your project.
Our approach creates layered security to specifically address both physical and administrative needs for a full range of security options.
Schlage’s layered security approach to keysystems let’s you combine standard opensecurity with restricted solutions and thosethat meet your highest security needsunder one keyway design. It’s innovativethinking that is flexible and upgradeable tofit your security needs well into the future.
Schlage key systems provide patented,restricted, and high security solutions to helpprotect human safety and the valuable assets ofyour business. These innovative key systems aredesigned for flexibility and value. They allowapplication of open keyways alongside restrictedoptions to appropriately address security levelson each individual doorway yet working within asingle keyway system for maintenance ease andcontrol.You get the right levels of security where itcounts in a facility-wide solution designed toaccommodate your budget.
Attributes
Manufacturer surcharge: 4.5%
Application: Compression Spring
Cam Number: L583-477
Cam Type: Straight
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Length: 1-1/2 In.
Cylinder Type: Mortise Cylinder
Finish: 613/US10B
Finish Family: Dark Bronze
Handing: Non-handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Limited Warranty: 3 Years
Of Keys: 2
Origin: Mexico
Pack Qty: 1
Pbs Options: ‘12260125,12271736
Pins: 6
Series: Schlage Cylinders
Std Keyway: C
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- ALX Key Systems, Cylinders and Keys Catalog
- Modular Cylinder Brochure
- Schlage Cylinders Cut Sheet
- Schlage Cylinders and Keyways Quick Reference Guide
- Schlage Everest 29 SL Data Sheet
- Schlage Everest 29 SL Multiple Key Systems Data Sheet
- Schlage Everest 29 SL/Primus XP Data Sheet
- Schlage Parts;Schlage Cylinders Cut Sheet
- Von Duprin Finishes Chart
