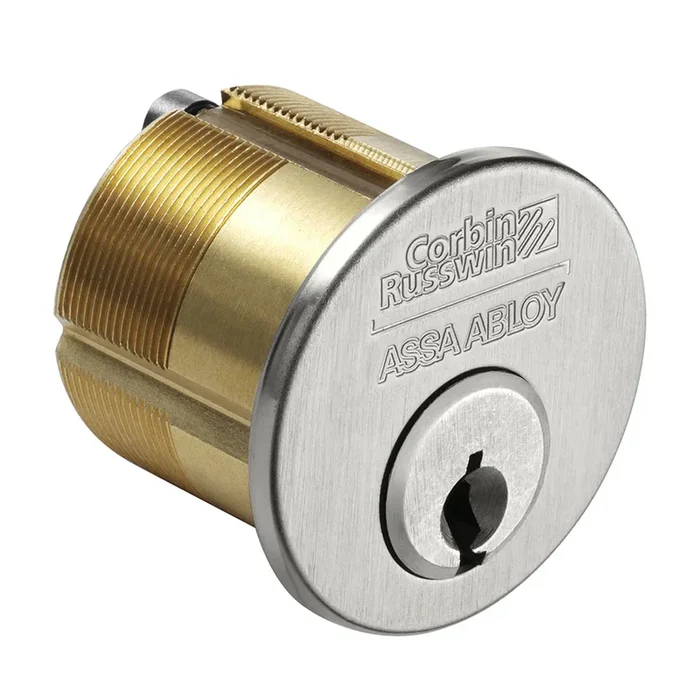

Corbin Russwin 1000-114-A01-6-N3 626 1-1/4″ Mortise Cylinder
Corbin Russwin 1000-114-A01-6-N3 626 1-1/4 Inch Mortise Cylinder delivers reliability and security in a compact design. Crafted from solid brass, this mortise cylinder is built to withstand the demands of various applications while maintaining a sleek satin chrome finish that complements any door hardware aesthetic.With a length of 1-1/4 inches and designed with the N3 keyway and A01 Cloverleaf cam, this cylinder offers flexibility and compatibility with a wide range of mortise cylinder applications. The conventional cylinder series features a full range of keyways suitable for mortise, rim, deadbolt, and component cylinders, ensuring you have the right solution for your locking needs. This model is equipped with 6 pins, providing enhanced security, and comes with two blank keys for customization. Engineered in the USA, it meets BAA qualifications, reflecting high manufacturing standards. The Corbin Russwin 1000-114-A01-6-N3 is not only easy to install but also comes with a one-year limited warranty, ensuring peace of mind with your purchase.Whether you’re a building professional or a knowledgeable homeowner, this mortise cylinder is an essential addition to your door hardware repertoire.
1-1/4 Inch Mortise Cylinder
1-1/4 In. Mortise Cylinder, N3 Keyway A01 Cloverleaf Cam, Satin Chrome
Corbin Russwin Mortise Cylinders are made from solid brass and are designed to work in all mortise cylinder applications. They are available in lengths ranging from 1″ to 3-3/4″ and offer a large variety of cams to work in any application. 1″ Cylinders are available 5-Pin only, 1-1/8″ Cylinders are 6-Pin and 7-Pin is available in cylinders 1-1/4 through 3″.
Conventional Cylinders: Full range of keyways for mortise, rim, deadbolt and component cylinders.
Attributes
Baa Qualified: Yes
Base Material: Brass or Bronze
Cam Number: A01
Cam Type: Corbin Russwin Clover
Country of origin: USA
Cylinder Length: 1-1/4 In.
Finish: 626/US26D
Keying: 0 Bitted
Keys: Blank
Limited Warranty: 1 Year
Of Keys: 2
Origin: USA
Pack Height: 2.5″
Pack Height 2: 6″
Pack Length: 4″
Pack Length 2: 16.25″
Pack Qty: 1
Pack Volume: 27.5 in³
Pack Volume 2: 1023.75 in³
Pack Width: 2.75″
Pack Width 2: 10.5″
Pins: 6
Series: Conventional Cylinders
Ship Weight: 0.4 lbs.
Std Keyway: N3
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 32
Resources
- Conventional Cylinders Cut Sheet
- Key Systems Catalog
