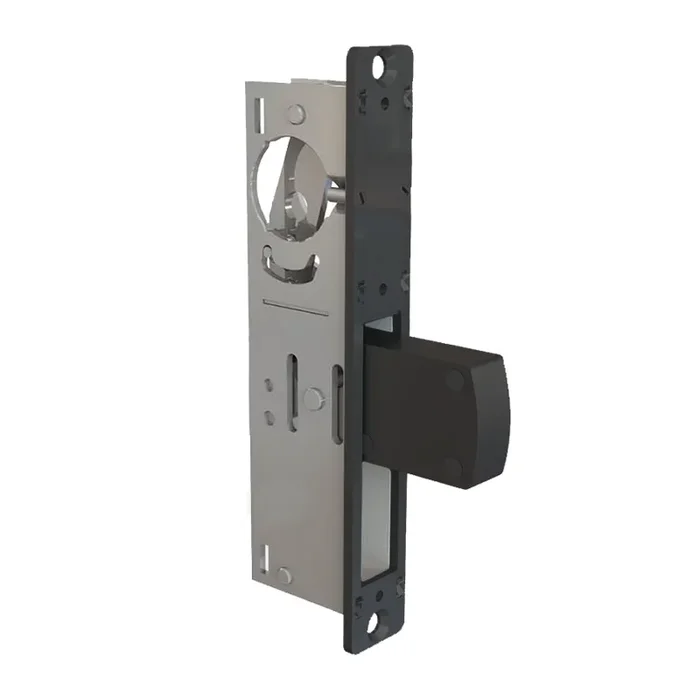

Adams Rite MS1951P-310-335 1-1/8in Backset Deadbolt, Radius Faceplate, Black Anodized
Adams Rite Manufacturing MS1951P-310-335 1-1/8in Backset Deadbolt showcases a robust design ideal for securing single leaf narrow stile aluminum doors. Constructed with a fully stainless steel case and internal components, this deadbolt is engineered for maximum security. The laminated eight-ply stainless steel bolt features an alumina-ceramic core, providing exceptional resistance against hacksaw attacks, including high-powered rod-type hacksaws. With a cylinder backset of 1-1/8 inches, the MS1951P offers a standard straight bolt measuring 5/8″ x 1-3/8″, delivering a throw of 1-3/8 inches. The radius faceplate, measuring 1″ x 6-7/8″, complements its sleek design. Designed for ease of operation, the deadbolt can be activated by a 360˚ turn of the key or thumbturn, allowing for seamless ingress and egress. This deadbolt is compatible with header and threshold bolts for multi-point locking in double door applications, enhancing its versatility. Additionally, it can be equipped with various interior options, including a thumbturn or mortise cylinder, ensuring compliance with ADA regulations. Available in a sleek black anodized finish, the Adams Rite Manufacturing MS1951P-310-335 deadbolt represents a premium choice for those seeking reliable and stylish security solutions.
1-1/8in Backset Deadbolt, Radius Faceplate, Without Strike Plate, 711/335 Black Anodized
Notice: The info below is not item specific.
The stainless steel MS1950P Series MS deadlock utilizes a laminated stainless steel bolt, now with enhanced security features, to provide maximum security for a single leaf narrow stile aluminum door. The stainless steel MS1950P-X5X series MS deadlock utilizes a laminated stainless steel hook bolt, now with enhanced security features, to provide maximum security for a sliding narrow stile aluminum door. Both are activated by a pivot mechanism.
Features:
- Cylinder Backset: 31/32″ [24.6 mm], 1-1/8″ [28.6 mm], or 1-1/2″ [38.1 mm] only
- Case: Measures 1″ x 6″ x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Fully stainless steel case and internal components. Internal stainless steel plate for enhanced security.
- Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type “super” hacksaws.
- MS1950P Bolt: Standard straight bolt measures 5/8″ x 1-3/8″ x 2-7/8″ [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8″ [34.9 mm] throw
- MS1950P-X5X Bolt: 5/8″ x 1-3/8″ [15.9 mm x 349.9 mm] with 13/16″ [20.3 mm] throw. Hook shape repels pry bar attempts to “spread” the door from its jamb or lift it off its track.
- Faceplate: Measures 1″ x 6-7/8″ [25.4 mm x 174.6 mm].
- Strike: Trim plate, box strike, and armored strike are available separately.
- Options: “Schoolhouse” version, also available, is modified so that operation from inside is “unlock only”. This lock is handed and must be specified LH or RH. Specify Series SCH1950, (-X5X). Same faceplate and backset options as Series MS1950P, (-X5X)
Function:
- A 3″ laminated stainless steel bolt and complete stainless steel construction makes the heavy duty MS1950P MS® Deadlock a higher security, premium locking solution for swinging doors. The MS1950P is compatible with header and threshold bolts to accommodate multi-point locking in a double door application. The stainless steel hook bolt of the MS1950P-X5X Series MS® Deadlock answers the security need of sliding doors. The hook shaped bolt resists the parting motion of sliding door and jamb.
Operation:
- For ingress, a 360˚ turn of the key or thumbturn on the exterior cylinder retracts the counterbalanced bolt. While the bolt is retracted the door acts as a passage function, until the deadlock is re-locked from either side of the opening. Typically, if the door remains unlocked during business hours, the interior side is equipped with a mortise cylinder and indicator to allow for flexible traffic control by management. An interior thumbturn to lock the bolt and a 4550 lever can also be installed on the interior side to ensure free egress & ADA compliance. Key can be removed only when bolt is in a locked or unlocked state. Lock body accepts a mortise cylinder, thumbturn, 4089 indicator, or 4550 deadlock lever from either side.
How to Order:
- Faceplate:
- 0P: Flat
- 1P: Radius
- 1WP: Radius with weatherstrip
- 2P: Bevel
- 3P: Without faceplate, without strike plate
- Backset:
- 2: 31/32″
- 3: 1-1/8″
- 4: 1-1/2″
- Bolt Shape:
- 1: Straight bolt
- 5: Hook bolt
- Handing:
- 0: Non-Handed
- 5: LH or RHR
- 6: RH or LHR
Finishes:
- 313 – Dark Bronze Anodized
- 335 – Black Anodized
- 628 – Clear Anodized
Attributes
Alternate Codes: MS1951P-310-335, MS1951P310335
Category: Glass Aluminum Hardware, Locking Hardware, Lock Sets
Commercial Residential: Commercial
Finish: 315/335
Installation: Commercial
Pack Qty: 1
Series: MS Deadlock
Subtype: Aluminum Door Deadlocks
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
