Description

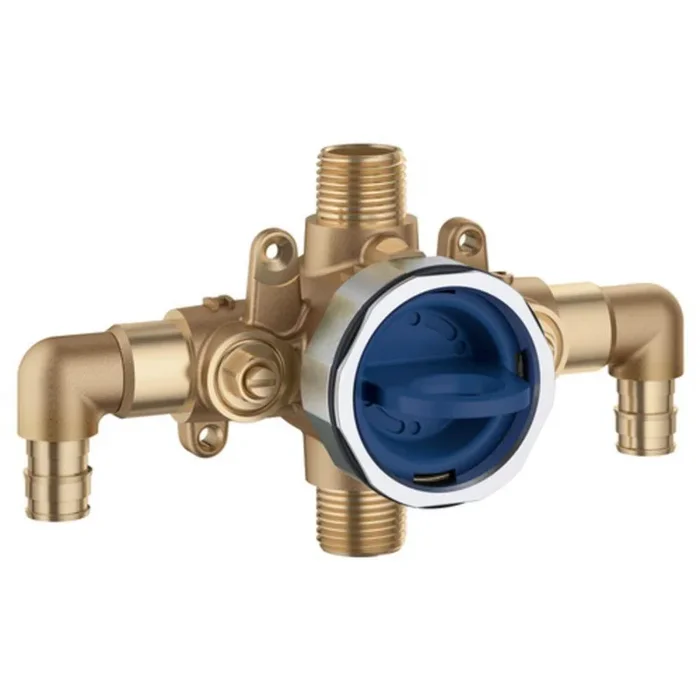

Grohe 35116000-1/2″ Cold Expansion PEX Pressure Balancing Valve with Stops
Grohe 35116000-1/2 in. Cold Expansion PEX Connection Pressure Balancing Valve with Stops is designed for exceptional performance and ease of installation. This valve features PEX elbow connections, allowing for a straightforward setup that eliminates the need for additional adaptors and minimizes potential leak points. Its innovative design includes the ability to rotate the valve 180°, accommodating supply lines from either the floor or ceiling, making it adaptable to various plumbing configurations. Testing and maintenance are simplified with the inclusion of a flush plug, which enables the valve body to be tested and flushed without requiring the valve cartridge. This feature supports testing with air up to 200 psi or water up to 300 psi, ensuring reliability before installation. The durable DZR cast brass body is built to withstand harsh water conditions, making it both corrosion-resistant and long-lasting. The Grohe 35116000 also includes built-in service stops, facilitating easy servicing without disrupting the entire system. Its exclusive plaster guard not only protects the valve during installation but also serves as a guide, providing robust support for thin-wall applications. With a wide rough-in range from 1-3/4 in. to 2-3/4 in. from the finished wall to the back of the valve, this product is engineered for flexibility. Certified by CSA and adhering to ASME standards, this pressure balancing valve is a reliable choice for both residential and commercial projects. The flat back design allows for flush mounting against cross braces, ensuring a solid installation. Experience convenience and durability with the Grohe 35116000, a vital component for your tub and shower setups.
1/2 in. Cold Expansion PEX Connection Pressure Balancing Valve with Stops
PEX elbow connections for easy installation without adaptors, reducing leak pointsValve can be easily rotated 180° to accommodate supply lines from floor or ceilingFlush plug allows valve body to be tested and flushed without the presence of the valve cartridge (ships with trim)Can be tested using flush plug with air (200 psi) or water (300 psi)Stainless steel retaining ring with flats secures flush plug and cartridge, eliminating the need for screwsFlat back allows valve to be mounted flush against cross brace for easy and solid installationDZR cast brass body is durable and corrosion-resistant even in harsh water conditionsBack-to-back capability allowing hot and cold to be reversed quickly and easilyExclusive plaster guard is designed to protect valve and act as a guide during installationPlaster guard can serve as mounting support for thin-wall installations; Wide rough-in range from 1-3/4 in. to 2-3/4 in. from finished wall to back of valve; Includes service stops for easy servicing at the valve; Cartridge ships with trim
Attributes
ASME: ASME A112.18.1, ASME A112.1016
ASSE Standards: ASSE 1016
Built-in Stops: Yes
CSA Certified: CSA B125.1, CSA B125.16
Collection: Grohsafe®
Connection Type: Cold Expansion PEX
Depth: 2-3/4 in
Faucet Valve Type: Pressure Balancing
Height: 3-5/8 in
IAPMO Listed: No
NSF Certified: No
Pressure – Maximum: 300 psi
Valve Body Material: Brass
Valve Size: 1/2 in
Valve Type: Tub & Shower Rough-In Valve
Width: 6-1/2 in
