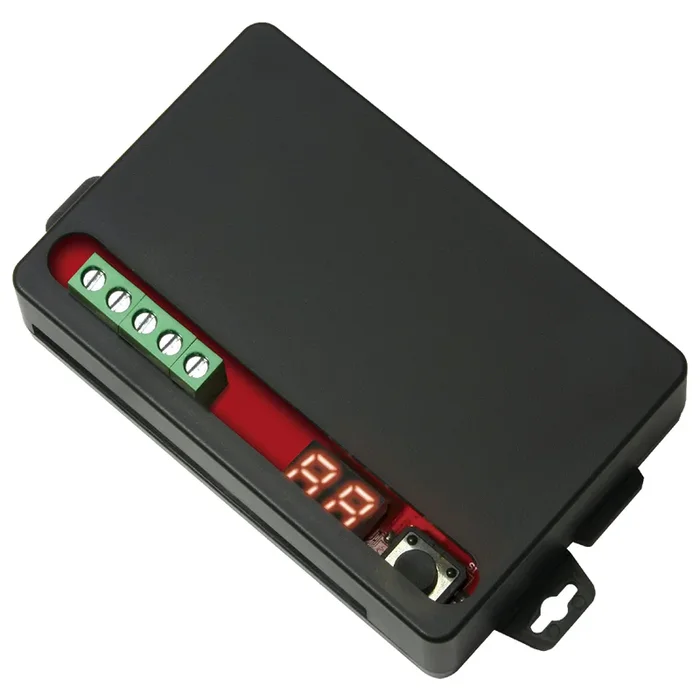

Seco-Larm SK-910RD1 1-CH Radio Frequency Receiver 315 MHz 10-24V ACDC
Seco-Larm SK-910RD1 1-CH Radio Frequency Receiver operates at 315 MHz and is designed for versatile remote control of various devices, such as garage doors, lights, motorized gates, and lifts. This ENFORCER receiver supports dual-frequency, offering seamless compatibility with both ENFORCER 315 and 433.92 MHz transmitters, including fixed and code-hopping CODEBUMP variants. One of the standout features is its flexible operating voltage range of 10 to 24 VAC/VDC, allowing for a wide array of installation options. The SK-910RD1 can receive signals from up to 500 feet (150 meters), or extend to 1,000 feet (300 meters) when paired with optional Extended Range Antennas. With independently programmable channels, it supports up to 15 transmitter button codes per channel and features five distinct output modes, including timed pulse and toggle. The relay output is rated for Form C at 10A@14VDC, ensuring reliable performance. Installation is straightforward with screw terminal connectors and a user-friendly digital display for easy monitoring. Designed to operate in conditions of 5-95% humidity and temperatures ranging from 32° to 167° F (0° to 75° C), the Seco-Larm SK-910RD1 is a robust choice for any security system.
1-CH Radio Frequency Receiver 315 MHz 10-24V ACDC
Notice: The info below is not item specific.
ENFORCER 1-channel RF receiver offers multiple independently controlled output modes to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, and more. Now with dual-frequency support, it offers increased flexibility and compatibility with all ENFORCER 315 or 433.92MHz transmitters, both fixed and code-hopping CODEBUMP variants.
Features:
- Flexible 10~24 VAC/VDC operating voltage
- Simultaneously receive 315 and 433.92MHz signals with optional Extended Range Antenna
- Range up to 500ft (150m) or up to 1,000ft (300m) with optional Extended Range Antennas
- Independently programmable channels and up to 15 transmitter button codes per channel
- Pushbutton programming, no jumpers to cut or switches to set
- 5 Output modes/channel—timed pulse (0.5~99sec), timed pulse (1~99min), toggle, latch, and follow (validity)
- Compatible with all ENFORCER SK-series transmitters of the receiver’s base frequency and the optional Extended Range Antenna’s frequency
Specifications:
- Operating frequency: 315MHz
- Memory capacity: Traditional
- Operating voltage: 10~24 VAC/VDC
- Operating current: Standby: 16mA@12VDC, 12mA@24VDC. Active: 60mA@12VDC, 50mA@24VDC (both per channel)
- Relay output modes: Type: Independent, sequence, access control. Modes: .05~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
- Relay contacts: Number: 1. Rating: Form C 10A@14VDC
- Connectors: Screw terminals, +, -, with NO/NC/COM per relay
- Digital display: 2-digit, 7-segment LED
- Operating humidity: 5~95%, non-condensing
- Operating temperature: 32°~167° F (0°~75° C)
- Dimensions: 4-3/16″ x 7/8″ x 2-3/8″ (107 x 23 x 60mm)
Attributes
Alternate Codes: SK-910RD1, SK910RD1
Category: Access Control, Wireless
