Description
CRL 8970S 105 Hold Open Concealed Closer Package for Side-Load A.D.A. “S” Installation
CRL 8970S 105 Hold Open Overhead Concealed Closer Package is specifically designed for side-load installations, accommodating doors with a top rail depth of 1/2″ (13 mm). This comprehensive package includes a medium spring size door closer, mounting clips, a Type “S” side-load arm, and an adjustable dual-purpose bottom pivot set, ensuring you have all necessary components for a seamless installation. Engineered for performance, the door closer features independent dual-action valves that allow for precise control over closing and latching speeds, enhancing usability and safety. This model offers both 90º and 105º hold open options, ideal for various architectural requirements. The closer body fits into standard 1-3/4″ x 4″ (44 x 102 mm) or larger extrusions, making it versatile for different applications.With a 5-year limited warranty and UL listing, the CRL 8970S provides peace of mind in quality and compliance. However, it’s important to note that this closer is not suitable for doors exceeding 200 lbs (91 kg) or wider than 36″ (914 mm). To prevent potential damage, an auxiliary floor or overhead door stop is recommended. Elevate your project with this reliable and adjustable overhead door closer, designed for both functionality and aesthetic appeal.
105 Hold Open Overhead Concealed Closer Package for Side-Load Installation A.D.A. “S” Package
- For Doors with 1/2″ (13 mm) Top Rail Depth
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- Includes All Necessary Parts
- 5 Year Limited Warranty
- UL Listed
These

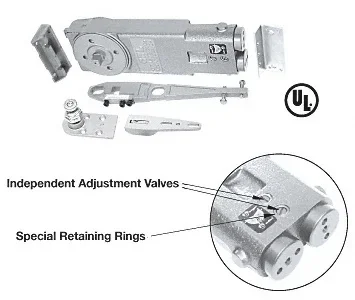

CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type “S” Side-Load Arm, and a “DP” Adjustable Dual-Purpose Bottom Pivot Set or “GE” Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4″ x 4″ (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36″ (914 mm).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Hold Open: 105°
Includes: Medium Size Closer, Mounting Clips,Type “S” Side Load Arm,”DP” Adjustable Dual-Purpose Bottom Pivot Set or “GE” Bottom Pivot Set
Product Details: Door Closer Bodies Fit Into Standard 1-3/4″ x 4″ Or Larger,Extrusions
Shipping Limitations: None
Spring Size: A.D.A. – 8.5 Lb
Top Rail Depth: 1/2
Type: 105º Hold Open
Warning: Closer Not To Be Used For Doors Weighing In Excess Of 200 Lbs Or Wider Than 36″
Resources
- Door Closer Warranty
- How to Order Overhead Concealed Closers.pdf
- Specifications Closer2.pdf
