Description

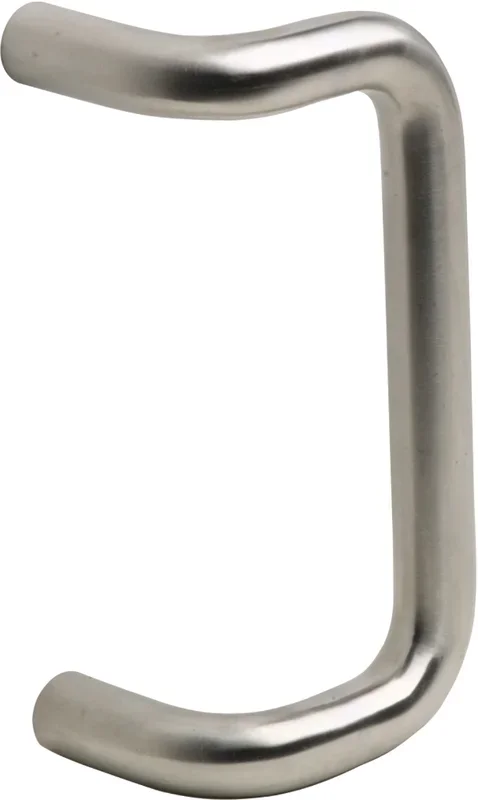

Ives 8190EZHD-0 US32D-316 O 10in Offset Pull, 1in Dia, Satin Stainless Steel, Decorative Thru Bolt
Ives 8190EZHD-0 US32D-316 O 10in Offset Pull combines durability and style, making it an ideal choice for high-traffic environments. Crafted from premium 316 Series stainless steel, this pull not only meets but exceeds industry standards for corrosion resistance, ensuring longevity even in external applications. With a sleek satin finish, it enhances the aesthetic of any door while providing a robust solution for everyday use. Measuring 10 inches in size, this offset pull features a 1-inch diameter and is designed for easy installation with heavy-duty mounting hardware that surpasses typical requirements. The standard mounting hardware accommodates doors ranging from 1 1/2″ to 1 3/4″ thick, with optional packages available for thicker doors. Each pull comes with through bolt screws and decorative washers included for a polished look. The Ives 8190EZHD-0 also meets ANSI/BHMA 156.06 certification and complies with ADA standards, making it suitable for barrier-free applications. Available in multiple sizes, this pull can be tailored to fit various project needs. Elevate the functionality and appearance of your doors with the reliability and elegance of the Ives 8190EZHD-0 Offset Pull.
10in Offset Pull, 1in Diameter, Decorative Blind Thru Bolt O Mount, 630-316/US32D-316 Satin Stainless Steel
Notice: The info below is not item specific.
Ives offers various pulls to meet opening and project needs, no matter the door’s design, size, type or location. Whether offset or straight, there is a pull that is tested to withstand high-traffic areas and abuse for any application.
Specifications:
- Available Sizes: 8″, 10″, 12″, 18″
- Material Substrate:
- Made from solid aluminum (6061-T6 Alloy), brass, or stainless steel (316 Series)
- 316 Series stainless steel standard, exceeding industry standards for corrosion resistance
- Recommended for external applications
- Mounting Hardware:
- Heavy duty mounting hardware exceeds industry standards
- 3⁄8-16 mounting hardware
- Specify door thickness: Standard mounting hardware for door thickness of 1 1⁄2″ to 1 3⁄4″ unless otherwise specified. Optional package available for 2″ and 2 1⁄4″ thick doors
- Comes standard with through bolt screws and decorative washers (STD – mount)
- Optional mounting hardware available (see general information section for details) A, F, I, L, N, O, P, Q, X
- Mounting hardware for other door thicknesses are available as engineering special
- Certifications:
- Meets ANSI/BHMA 156.06
- Complies with ADA and barrier free applications
Dimensions:
| Product Number | Projection | Clearance | Center to Center | Over Length | Overall Offset |
|---|---|---|---|---|---|
| 8190EZHD-8 | 3-1/2″ | 2-1/2″ | 8″ | 9″ | 4-1/4″ |
| 8190EZHD-0 | 3-1/2″ | 2-1/2″ | 10″ | 11″ | 4-1/4″ |
| 8190EZHD-2 | 3-1/2″ | 2-1/2″ | 12″ | 13″ | 4-1/4 |
| 8190EZHD-18 | 3-1/2″ | 2-1/2″ | 18″ | 19″ | 4-1/4″ |
Finishes:
- 605/US3 – Bright Brass
- 606/US4 – Satin Brass
- 612/US10 – Satin Bronze
- 613/US10B – Oil Rubbed Bronze
- 619/US15 – Satin Nickel
- 625/US26 – Bright Chrome
- 626/US26D – Satin Chrome
- 626-AM/US26D-AM – Satin Chrome Antimicrobial
- 628/US28 – Satin Aluminum, Clear Anodized
- 629-316/32-316 – Bright Stainless
- 630-316/32D-316 – Satin Stainless
- 630-AM/US32D-AM – Satin Stainless Antimicrobial
- 631/BLK – Matte Black
- 643e/716 – Aged Bronze
- 695/SP313/US10BE – Dark Bronze Powder Coat
Features
- Made from solid aluminum (6061-T6 Alloy), brass, or stainless steel (316 Series)
- Comes standard with through bolt screws and decorative washers (STD – mount)
- 3⁄8-16 mounting hardware
- Meets ANSI/BHMA 156.06
- Certifications:
- Optional mounting hardware available (see general information section for details) A, F, I, L, N, O, P, Q, X
- Complies with ADA and barrier free applications
- Specify door thickness: Standard mounting hardware for door thickness of 1 1⁄2″ to 1 3⁄4″ unless otherwise specified. Optional package available for 2″ and 2 1⁄4″ thick doors
- Recommended for external applications
- Available Sizes: 8″, 10″, 12″, 18″
- Mounting Hardware:
- Heavy duty mounting hardware exceeds industry standards
- Material Substrate:
- 316 Series stainless steel standard, exceeding industry standards for corrosion resistance
- Mounting hardware for other door thicknesses are available as engineering special
Attributes
Alternate Codes: 8190EZHD-0 US32D-316 O, 8190EZHD0US32D316O, 8190HD-0 O US32D, 8190HD0OUS32D, IVE8190-0-O-630, IVE8190EZHD-0 US32D-316 TYPE O, IVE8190HD-0-0 630, IVE8190HD-0 32D O MOUNT, IVE8190HD-0 32D O MOUNTING, IVE8190HD-032D TYPE O MTG, IVE8190HD-0 630 TYPE O MOUNT,
Category: Door Accessories, Push & Pull Plates
