Description

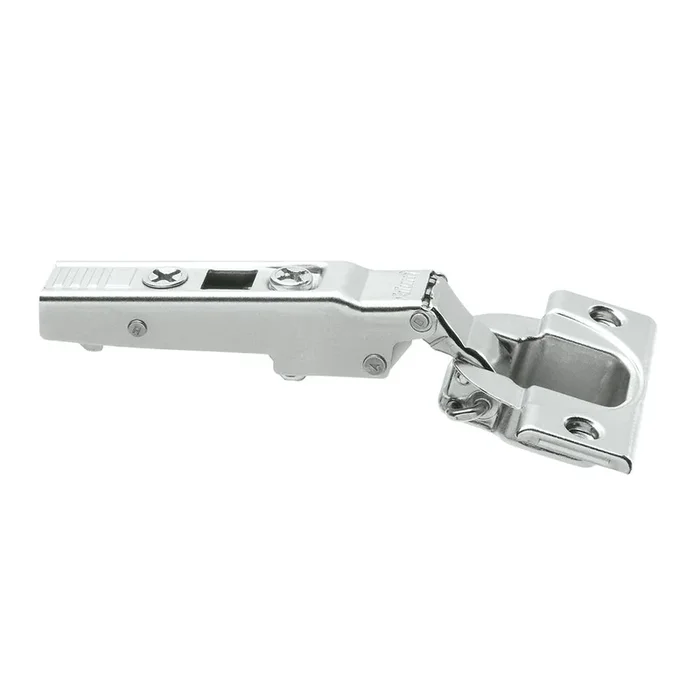

Blum 09047423 110+ Full Overlay Self-Close Screw-On Hinge
BLUM 09047423 110+ Full Overlay Self Close Screw-on hinges are designed to enhance the functionality and aesthetic appeal of your cabinetry. Ideal for those seeking a seamless and modern look, these hinges offer a maximum overlay of 20mm, making them suitable for various cabinet styles. The self-closing feature ensures that doors close smoothly and securely, adding convenience to daily use. For precise installation, the hinge and mounting plate selections are crucial. Choose from options for a 1/4″ overlay with Hinge B073T3650 and Mounting Plate B175H710, a 1/2″ overlay with Hinge B073T3550 and Mounting Plate B175H713, or a full overlay setup using the same hinge with Mounting Plate B175H710. Inset applications can also be accommodated with Hinge B073T3750 and Mounting Plate B175H710. With a cup depth of 13mm, these European-style hinges are compatible with thicker doors, accommodating up to 1″ in thickness. Installation is straightforward, as screws are included with the screw-on hinges, while mounting plates must be ordered separately. Trust in BLUM’s limited lifetime warranty, ensuring quality and durability for your projects.
110+ Full Overlay Self Close Screw-on
Blum Self Close Full O/L CLIPTOP 110 Plus Screw on 73T3550
Maximum overlay of 20mm
- Full Overlay – Hinge B073T3550‚ Mounting Plate B175H710
- Can use on thicker doors up to 1″
- Mounting Plates for Hinges must be ordered separately
- Choose Hinge and Mounting plate to attain correct overlay or inset as follows:
- 13mm cup depth
- Screws Included with screw-on hinges
- Limited Lifetime Warranty
- Inset – Hinge B073T3750‚ Mounting Plate B175H710
- new insertion ram for press in hinges BMZM.0040
- 1/2″ Overlay – Hinge B073T3550‚ Mounting Plate B175H713
- 1/4″ Overlay – Hinge B073T3650‚ Mounting Plate B175H710
Attributes
: Screw on Straight
Length: 0
Manufacturer: Blum
Monthly Special: No
Type: European Hinge
Upc: 9002617780659
Weight: 0.150000
