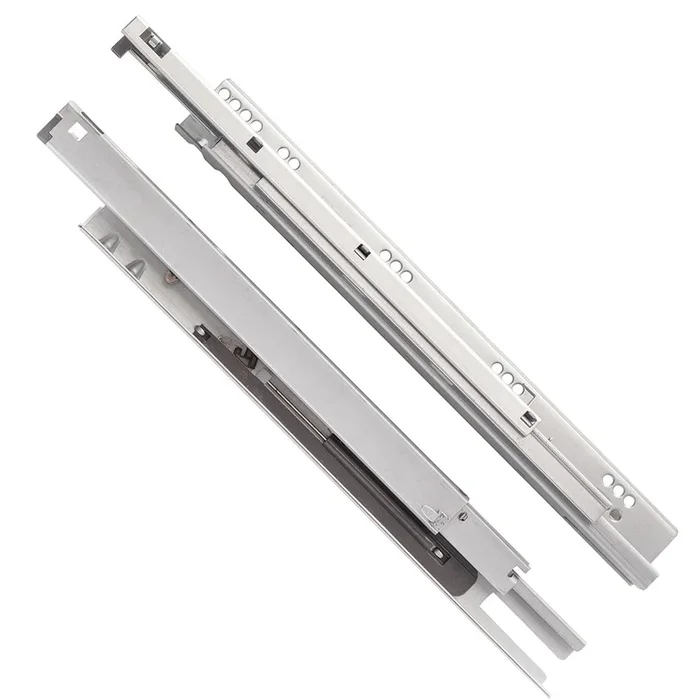

Knape & Vogt KVGS-2070AB 15 15″ 75lb Full Extension Undermount G-Slide Hardware
KNAPE & VOGT KVGS-2070AB 15″ 75lb FulExt Undermount G-Slide enhances your cabinetry with its advanced design and reliable performance. These 15-inch undermount drawer slides are engineered to support a dynamic load of up to 75 pounds, making them an ideal choice for high-quality cabinet projects. The full-extension feature allows easy access to the entire drawer, while the soft-close mechanism ensures a smooth and quiet operation, adding a touch of luxury to your cabinetry. Designed for both frame and frameless construction, these slides accommodate drawer thicknesses of 1/2″ to 5/8″, with a recommended maximum drawer width of 24 inches. The 17/8″ height includes a dampener for added stability, and the 32mm hole pattern aligns with previous GS2070 slides, promoting easy installation.With a sleek zinc finish, the KVGS-2070AB slides not only improve functionality but also enhance the overall aesthetics of your cabinet systems. Easy drawer removal is facilitated by front release levers (sold separately), and optional rear mounting brackets provide additional versatility. Meeting or exceeding ANSI performance standards as established by BIFMA, BHMA, and KCMA, these slides are a dependable choice for professionals and knowledgeable homeowners alike.
15″ 75lb FulExt Undermount G-Slide
GSlideA 15-inch 75lb FulExt Undermount Drawer Slide
Elevate your cabinetry with the GSlide 2070 Undermount Drawer Slides. These full-extension, soft-close slides offer a smooth, quiet operation and can handle up to a 75 lb dynamic load. With easy installation and a sleek zinc finish, they promise to boost the functionality and aesthetics of your cabinet systems, adhering to top industry standards. Ideal for any high-quality cabinet project.
- Load Rating: 75-Pound Class Dynamic
- Easy drawer removal with front release levers
- 5/32″ (4mm) setback
- Height: 17/8″ (includes dampener)
- Optional rear mounting bracket
- Minimum interior drawer width = 61/2″
- Designed to meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA
- Recommended max drawer width 24″
- Travel: Full Extension
- 32mm hole pattern matches previous GS2070 slides and industry standards
- Available for drawer thickness of 1/2″ to 5/8″ drawer material
- Mounting: Undermount, for frame or frameless construction
- Zinc finish
- Release levers sold separately
Attributes
Manufacturer: Knape and Vogt
Monthly Special: No
Type: Drawer Slide
Weight: 4.010000
