Description

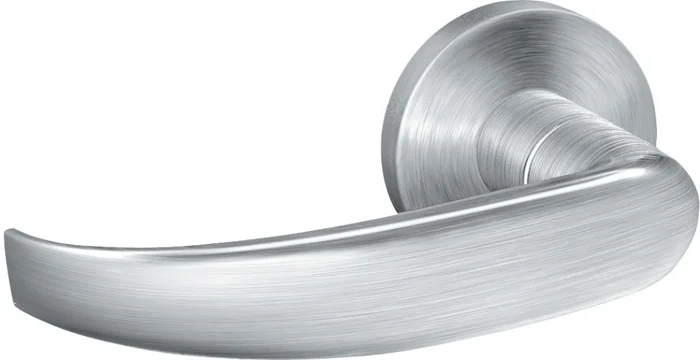

Schlage L904017B626AM 17b Privacy Mortise Lock W/anti Micro
Latchbolt retracted by lever from either side unless outside is locked by inside thumbturn.Turning inside lever or closing door unlocks outside lever. To unlock from outside, remove emergency button, insert emergency thumbturn(furnished).
- Tested and certified to ANSI/BHMA grade 1 operational and security standards
- UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Deadbolt features include anti-saw pin in bolt to prevent cut-through
- Security blocking hub prevents lock access by removing levers
- Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
- Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
- Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Two piece anti-friction tongue in latch bolt reduces wear
- Breakaway spindle keeps door secured in the event of vandalism
- Field reversible latch bolt allows handing change without opening case
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Attributes
Alternate Codes: L904017B626AM, L9040B17B626A, L9040BD17B626A, SCHL9040B17B626A, SCHL9040BD17B626A
Antimicrobial Coating: Schlage AM Antimicrobial
Baa Qualified: Yes
Backset: 2-3/4″
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Mexico
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Finish: 626AM/US26DAM
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish : Satin Chrome Antimicrobial Coated
Fire Rated: 3 Hours {A}
Function: Privacy
Grade: Grade 1
Lever Design: 17
Limited Warranty: 3 Years
Lock Category: Mortise Lockset – Latch Only
Rose/ Escutcheon: B Rose
Series: L Series
Subtype: Mortise Lock
Type: LOCK SETS
