Description

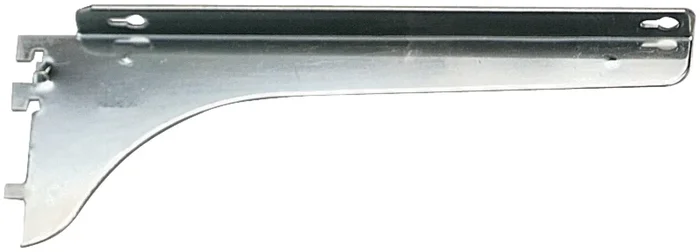

Hafele 774.25.213 183 Series KV Bracket for 83 Series Standards
Hafele 774.25.213 183 Series Bracket, KV for 83 Series Standards offers exceptional support with a robust weight capacity of up to 400 lbs. per pair. Constructed from durable steel with an Anochrome finish, this bracket is designed for heavy-duty applications, ensuring lasting performance in both residential and commercial settings. Its 10-inch length allows for versatile shelf placements, accommodating various storage needs. The innovative flanges feature keyhole style mounting holes, simplifying the attachment of wood shelves and streamlining installation. This user-friendly design helps reduce installation time while ensuring a secure fit. It’s important to note that proper installation and mounting are required for optimal performance. The bracket has been tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards, providing confidence in its reliability. For maximum load-bearing capacity, the bracket is intended for use with standards mounted on 16-inch centers, serving as a general guideline. The unique single slot design allows for adjustable shelving in 1-inch increments, catering to changing storage requirements. With RoHS compliance and a gauge formula of 16.00, the Hafele 183 Series Bracket combines strength, style, and practicality for all your shelving projects.
183 Series Bracket, KV for 83 Series Standards
Weight capacity up to 400 lbs./pair, Length 10″ model 183R ANO 10
Flanges include keyhole style mounting holes to make attachment of wood shelves quick and simple
Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16″ centers and are intended for use as general guidelines only.
Attributes
Adherence to standards: RoHS compliant
Finish: Anochrome
Gauge formula: 16.00
Length: 254.00 mm
Length (inch): 10″
Load bearing capacity: Pair: Up to 460 lbs
Load bearing capacity max.: 208.65 kg
Material: Steel
Model: 183R ANO 10
Model series: 183
Note on load bearing capacity: Based on per pair
Special notes on usage: Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16″ centers and are intended for use as general guidelines only.
Suitable for: Heavy duty
Unique selling points ( USP): Flanges include keyhole style mounting holes to make attachment of wood shelves quick and simple
Version: Single slot design Adjustable in 1″ increments
Resources
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 4.64
