Description

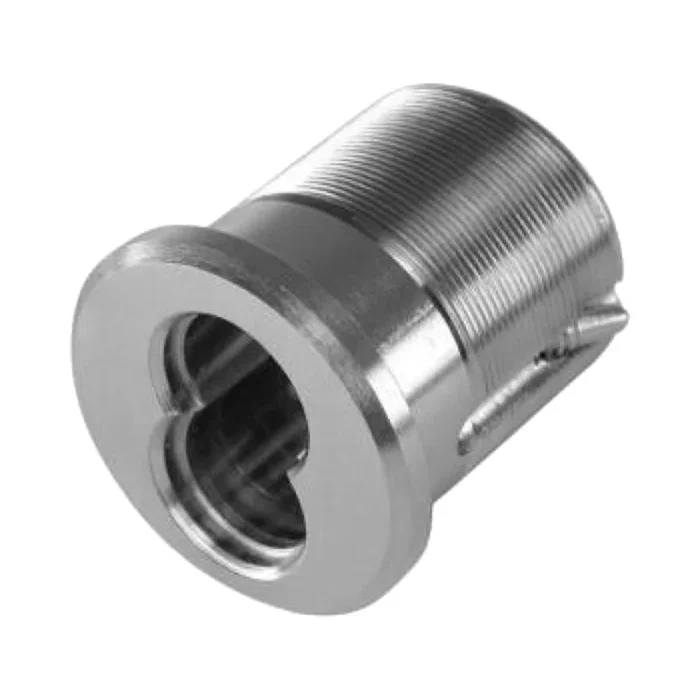

Best 1E7440C140RP3626 2.5″ Mortise Cylinder
BEST 1E7440C140RP3626 2-1/2 Inch Mortise Cylinder offers a reliable and secure solution for standard mortise applications. Designed for use with the BEST 40/45H series, this cylinder features a 7-pin SFIC prep that allows for easy integration into existing systems. The C140 straight thumbturn cam provides effortless operation, ensuring that access is both smooth and secure. Crafted from high-quality brass or bronze bar stock, this cylinder is durable and built to withstand the demands of commercial environments. Its satin chrome finish (626/US26D) not only enhances aesthetic appeal but also offers resistance to wear and tear. An innovative set screw is mounted diagonally within the cylinder wall, providing additional security by firmly holding the cylinder in place within its housing. With a length of 2-1/2 inches, the BEST mortise cylinder accommodates doors with a thickness ranging from 1-7/8 inches to 2-1/2 inches. The unit is backed by a limited three-year warranty, ensuring confidence in its performance. This product is made in the USA and ships conveniently via UPS. Upgrade your security with the BEST 1E7440C140RP3626, where quality meets functionality.
2-1/2 Inch Mortise Cylinder
Standard 2-1/2″ Mortise Cylinder, 7-Pin SFIC Prep Less Core, C140 Straight Thumbturn Cam, For Use With 40/45H, Satin Chrome Finish
Standard mortise applications require use of BEST’s 1E series cylinders. BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. BEST mortise cylinders feature the BEST interchangeable core and may be masterkeyed into any existing BEST system.
BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes.
Attributes
Manufacturer surcharge: 7.0%
Baa Qualified: Yes
Base Material: Brass or Bronze
Cam Number: C140
Cam Type: Straight Thumbturn
Commercial Residential: Commercial
Country of origin: USA
Cylinder Length: 2-1/2″
Cylinder Type: 7-Pin SFIC Prep Less Core
Door Thickness: 1-7/8″ to 2-1/2″
Finish: 626/US26D
Finish Family: Matte Silver
For Use With: BEST 40/45H
Function: Standard
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Options: Standard 1E-R2/1E-R5 Ring Package
Origin: USA
Pack Height: 1.75″
Pack Height 2: 3.25″
Pack Length: 2.88″
Pack Length 2: 9.5″
Pack Qty: 1
Pack Volume: 8.8 in³
Pack Volume 2: 254.72 in³
Pack Width: 1.75″
Pack Width 2: 8.25″
Pins: 7
Series: E Series Cylinders
Ship Weight: 0.35 lbs.
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 20
Resources
- Cylinders – E Series Catalog
- E Series Cylinders Cut Sheet
- E Series Service Manual
- Installation Instructions for 1E Mortise Cylinders
- Installation Instructions for 1E Rim Cylinders
- Installation Instructions for 1E7R4 Turn Knob Cylinders
