Description

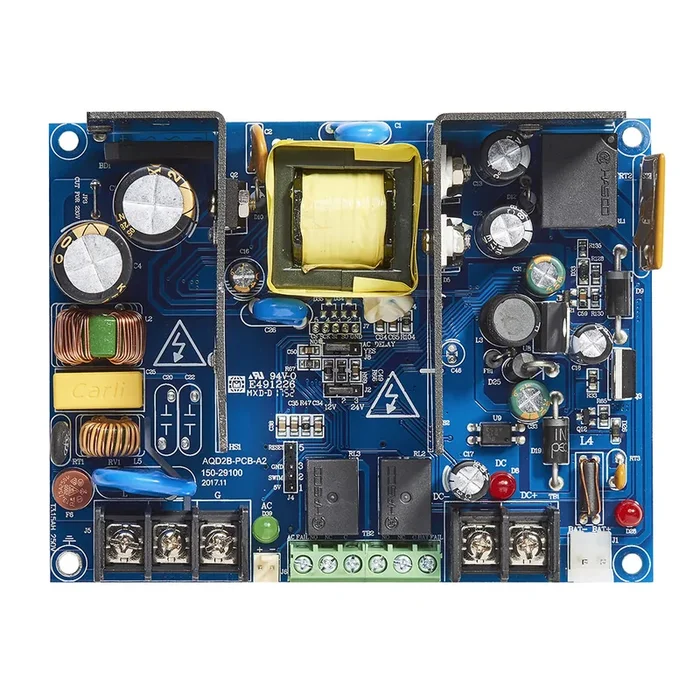

Securitron AQD2-8F8R1 Power Supply
The Securitron AccuPower AQD2 Series of switching power supplies are dual voltage, supervised units with a Battery charger. These field selectable units have a fast Battery charge reserve. They provide a maximum 2As at 12 VDC or 1.5As at 24 VDC, with up to eight independently controlled, power limited outputs. Rated up to 2.8A/1.4A continuous output. Dual-voltage 12/24 VDC field selectable. Tolerates brownout or overvoltage input from 90-240 VAC. Thermal shutdown protection comes with auto restart. Circuit breaker protects against Overcurrent and reverse Battery faults. Includes Battery charger and power supervision. Low Battery disconnect prevents deep discharge. Dedicated voltage enables faster Battery charging even under full load. MagnaCare lifetime replacement, no fault warranty. Power supply outputs are Class 2 power limited. Expandable up to eight independently controlled power limited outputs. Available with configurable access control input/outputs with fire trigger in either PTC or with fuse/ dry contact option, fire relay only, or configurable outputs with fire relay input. LED indicators and form “C” contacts provide supervision. Universal input 90-240 VAC. Supports up to two sealed gel, AGM or wet lead acid batteries. Includes 14″ x 9″ x 3.5″ cabinet. Operating temperature is between -4 to +104F (-20 to +40C).
Attributes
Commercial Residential: Commercial
Depth: 4.75
Finish: White
Finish : Applied
Finish Family: White
Fire Alarm Interface: Yes
Fuse Rating [ Amp]: 1
Fuse Type: Glass fuse
Fused Outputs: 8
Height: 14
Installation: Commercial
Limited Warranty: Lifetime
Maximum Operating Temperature (° F): 122
Minimum Operating Temperature (° F): -4
Monitoring Options: Yes
Number of Outputs: 8
Number of Relays: 8
Output Amps: 2 Amps
Output Voltage: 12.5/25
Output Volts: 12/24 VDC
Pack Qty: 1
Power Supply Type: Switching
Series: Securitron Power Supplies
Subtype: Power Supplies
Transformer Type: DC
Type: Power Supplies and Transformers
Unit of Measure: Each
Voltage: 12/24
Width: 14
