Description

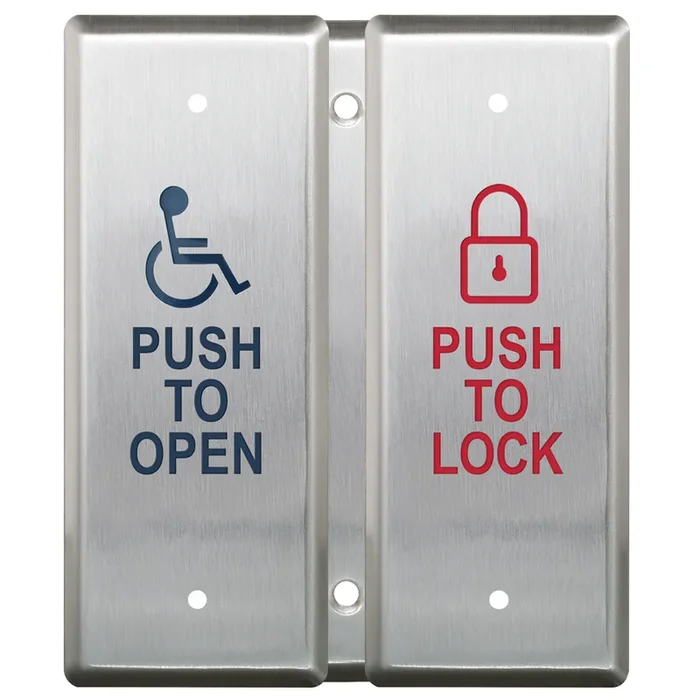

Camden CM-2520/48 2 Gang Combo Push Plate Switches WC Push to Open/ Push to Lock
Camden Door Controls CM-2520/48 2 Gang Combo Push Plate Switches WC Push to Open/Push to Lock offer a robust and versatile solution for high-traffic areas. Designed with heavy-duty stainless steel construction, these ADA-compliant switches feature a 4.5″ x 4.5″ rectangular faceplate that blends seamlessly into various environments, from hospitals to residential applications. The combination of a momentary push plate and a maintained key switch allows for effortless activation, making it ideal for wheelchair access or automatic door controls. With a minimal actuation force, these switches ensure ease of use while meeting ADA standards. Rated at 3 AMPs @ 30V DC for the push plate and 6 AMPs @ 30V DC for the key switch, the CM-2520/48 delivers reliable performance for demanding applications. They can be easily mounted on a double gang box and are suitable for both indoor and outdoor use, functioning efficiently within a temperature range of -40°F to 140°F. The switches come with various label options, including wheelchair logos and instructions, enhancing visibility for users. Supported by a three-year warranty with a ‘2 for 1’ replacement policy, Camden Door Controls CM-2520/48 is the ideal choice for those seeking durability and functionality in access control solutions.
2 Gang Combo Push Plate Switches WCPush to Open/ Push to Lock
Notice: The info below is not item specific.
CM-2510 and CM-2520 Series combination switches are heavy-duty, ADA-compliant door controls. The 4 1/2″ x 4 1/2″ rectangular faceplates are stainless steel, and the assembly is designed for easy installation directly on a double gang electric box. The N.O. tubular switch is rated 3 AMP @ 30V DC and provides virtually silent operation. The keyswitch includes a SPST maintained switch standard, rated 6 AMP @ 30V DC. Camden switches are designed for areas where an easy-to-activate, high-visibility switch is desired. Ideal for high-traffic areas, hospitals, wheelchair access, seniors’ residences, etc. They can be surface or flush mounted. Camden combination key switch and push plate switches are designed to control electric strikes, electromagnetic locks and automatic doors. The keyswitch may be used for “after hours” entry in an apartment application or to turn an automatic door on/off. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications. Camden vestibule switches are designed to control two automatic doors in vestibules. The switches are made for high frequency usage for both indoor and outdoor environments. Camden switches are versatile and can be supplied in various configurations and finishes to suit any commercial, industrial or residential application.
Features:
- Heavy Duty Stainless steel construction
- ADA compliant
- Minimal actuation force
- 3 year warranty with ‘2 for 1’ replacement
- Mounts in double gang box
- Durable stainless steel construction
- All-active designed design requires minimal actuation force and meets ADA requirements
- UL/CSA Approved SPST N.O. switches rated 3 AMPS @ 30V DC minimum
- Various logos and messages
- Architectural finishes
Specifications:
- Voltage: 12/24V AC/DC
- Standard Finish: US32/C32D
- Temp Range: -40°F to 140°F (-40°C to +60°C)
- Dimensions: 4.50″L x 5.75″W x 3.25″H
- Weight: 0.84lbs.
- Push Plate Contact Type: N/O SPST Momentary
- Push Plate Contact Rating: 3 A @ 30 VDC
- Key Switch Contact Type: N/O SPST Maintained
- Key Switch Contact Rating: 6 A @ 30 VDC
Faceplate Graphics:
- /1: ‘blank‘ faceplate
- /2: Wheelchair logo
- /3: ‘Push to open’
- /3F: ‘Poussez pour ouvir’
- /4: Wheelchair logo + ‘Push to open’
- /4F: Wheelchair logo + ‘Poussez pour ouvir’
- /48: Wheelchair logo + ‘Push to open’ and lock symbol + ‘Push to Lock’
Attributes
Alternate Codes: CM-2520/48, CM252048
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
