Description
Corbin Russwin 1000-200-A01-6-L4 612 2″ Mortise Cylinder

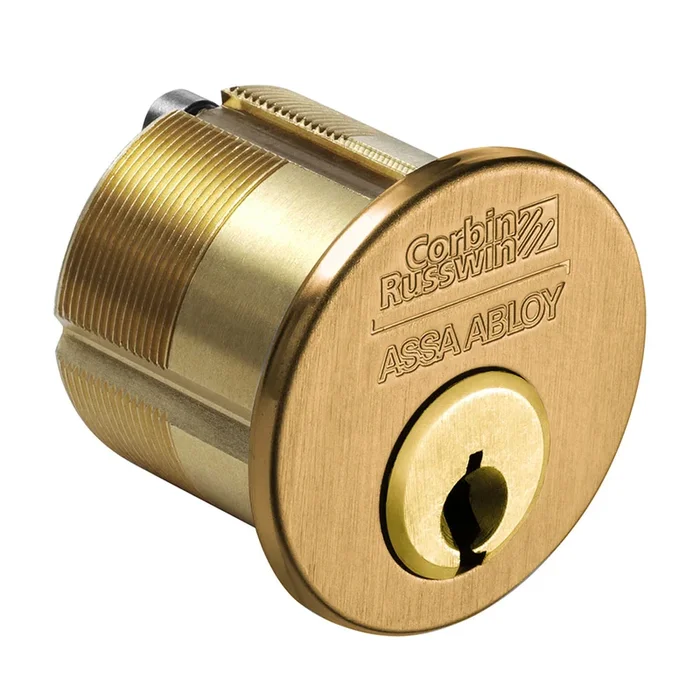

Corbin Russwin 1000-200-A01-6-L4 612 2 Inch Mortise Cylinder offers a robust solution for your locking needs, crafted from solid brass for durability and longevity. Designed to fit all mortise cylinder applications, this 2-inch cylinder features the L4 keyway and comes with an A01 Cloverleaf cam, ensuring compatibility with a wide range of locking mechanisms. With a full range of keyways available for mortise, rim, deadbolt, and component cylinders, the Corbin Russwin 1000-200 provides flexibility and security for various installations. Its satin bronze finish (612/US10) not only enhances the aesthetic appeal but also withstands daily wear, making it suitable for high-traffic areas. The cylinder is bitted to 0, meaning you can easily customize it to your specific keying needs, and it includes two blank keys for immediate use. Weighing just 0.6 lbs, it’s lightweight yet reliable. Additionally, this product is BAA qualified and proudly manufactured in the USA, reflecting a commitment to quality. Backed by a one-year limited warranty, the Corbin Russwin 1000-200-A01-6-L4 is an excellent choice for professionals seeking a dependable and versatile mortise cylinder to enhance security in residential or commercial settings.
2 Inch Mortise Cylinder
2 In. Mortise Cylinder, L4 Keyway A01 Cloverleaf Cam, Satin Bronze
Corbin Russwin Mortise Cylinders are made from solid brass and are designed to work in all mortise cylinder applications. They are available in lengths ranging from 1″ to 3-3/4″ and offer a large variety of cams to work in any application. 1″ Cylinders are available 5-Pin only, 1-1/8″ Cylinders are 6-Pin and 7-Pin is available in cylinders 1-1/4 through 3″.
Conventional Cylinders: Full range of keyways for mortise, rim, deadbolt and component cylinders.
Attributes
Baa Qualified: Yes
Base Material: Bronze
Cam Number: A01
Cam Type: Corbin Russwin Clover
Country of origin: USA
Cylinder Length: 2 In.
Finish: 612/US10
Keying: 0 Bitted
Keys: Blank
Limited Warranty: 1 Year
Of Keys: 2
Origin: USA
Pack Height: 2.5″
Pack Height 2: 6″
Pack Length: 4″
Pack Length 2: 16.25″
Pack Qty: 1
Pack Volume: 27.5 in³
Pack Volume 2: 1023.75 in³
Pack Width: 2.75″
Pack Width 2: 10.5″
Pins: 6
Series: Conventional Cylinders
Ship Weight: 0.6 lbs.
Std Keyway: L4
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 32
Resources
- Conventional Cylinders Cut Sheet
- Key Systems Catalog
