Description

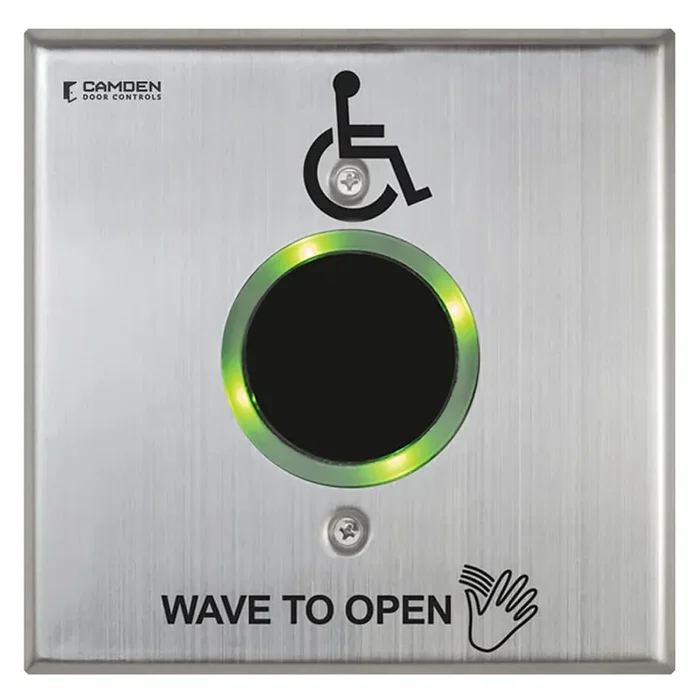

Camden CM-332/42SW-SGLR Touchless 2-Relay Switch
Camden CM-332/42SW-SGLR 2 Relay Touchless Switch offers a seamless solution for hands-free door activation, enhancing accessibility and convenience. Designed for both commercial and residential applications, this innovative switch features a stainless steel finish with a double gang faceplate that includes a hand icon, ‘Wave to Open’ text, and a wheelchair symbol, ensuring clear visual cues for users. With an adjustable operating range of 1 to 28 inches, the CM-332 is equipped with two SPDT Form ‘C’ relays, providing versatile functionality for various access control systems. The active infrared technology ensures reliable performance in all lighting conditions while minimizing false activations. This model also boasts a tri-color light ring that enhances visibility and notifications. Built to withstand the demands of indoor environments, the CM-332 operates on a voltage of 12-24V AC/DC, offering selectable fail safe or fail secure outputs. The adjustable time delay of 3 to 30 seconds allows for customizable operation, catering to specific needs. With a limited warranty of three years and a lightweight design of just 0.4 lbs, the Camden CM-332 is a durable and efficient choice for modern door control solutions.
2 Relay Touchless Switch
SureWave CM-332 Series Touchless Switch, 1″ to 28″ Range, 2 Relays, Double Gang Stainless Steel Hand Icon/’Wave to Open’ Text/Wheelchair Symbol Faceplate, Includes 1 Tri-Color Light Ring, Stainless Steel Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Serieswired, single-relay,hands-free switches featurean operating range of 1 to 30 inches, adjustable time delay of 1 to5 seconds, and providesuperior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology:Active Infra-red, utilizing microburst sensing technology
- Voltage:12-24V AC/DC
- Contact Type:
- CM-331/333/324/325:(1) SPDT Form ‘C’
- CM-332:(2) SPDT Form ‘C’
- Contact Rating:
- CM-331/332/333:3 Amps @ 30 V
- CM-324/325:5 Amps @ 30 V
- Current Draw:
- CM-331/332:40 mA
- CM-324/325:60 mA
- Wireless:
- CM-330:Built-In
- CM-331/332/333:Optional Plug-In
- Wireless Frequency:
- CM-330 Series:915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) ‘AA’ alkaline,-0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional),-4ºF to +153º F (-20ºC to +85º C)
- CM-330/333:
- Battery Life:Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332:1″- 28″ (25mm-711mm)
- CM-330/333:1″-12″ (25mm-304mm)
- CM-324:1″-30″ (25.4mm-762mm)
- CM-325:Min. 2″ (51mm) Hand, Max. 18″ (45mm) Mirror
- Time Delay:
- CM-330/331/332/333:3-30 Seconds
- CM-324/325:1-5 Seconds
- Operation:Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333:Momentary, Momentary with Alarm, Maintained
- CM-330/324/325:Momentary
- Relay Operating Modes:
- CM-332:Event, Sequence, Security, Toggle
- CM-331:Event, Toggle
- CM-330/333/324/325:Event
- Input:CM-331/332/333:REX, Door Contact
- Blue/Green/Red Light Ring:CM-331/332:Optional
Attributes
Application: Hand Icon, ‘Wave to Open’ Text, and Wheelchair Symbol
Base Series: CM-332 Series
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 3 to 30 Second Time Delay
Environment: Indoor
Finish: Stainless Steel
Finish Family: Matte Silver
Inputs: Request to Exit
Installation: Commercial
Lights: (1) Tri-Color
Limited Warranty: 3 Years
Mounting Plate Size: 2 Gang
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Pack Qty: 1
Product Height: 2″
Product Length: 5.25″
Product Width: 5.5″
Range: 1 Inch to 28 Inches
Relay Action: Multi Function
Relay Type: Form C
Relays: 2
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Ship Weight: 0.4 lbs.
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70454E+11
Upc Code: 6.70E+11
Wireless: Optional
Resources
- CM 324 Series Installation Instructions
- CM 325 Series Installation Instructions
- CM-324 & CM-325 Specs Sheet
- CM-330 Battery Operated Installation Instructions
- CM-330 Specs Sheet
- CM-331 & CM-332 Series Installation Instructions
- CM-331 Specs Sheet
- CM-332 Specs Sheet
- CM-333 Series Installation Instructions
- CM-333 Specs Sheet
- SureWave & ValueWave Product Comparison Chart
