Description

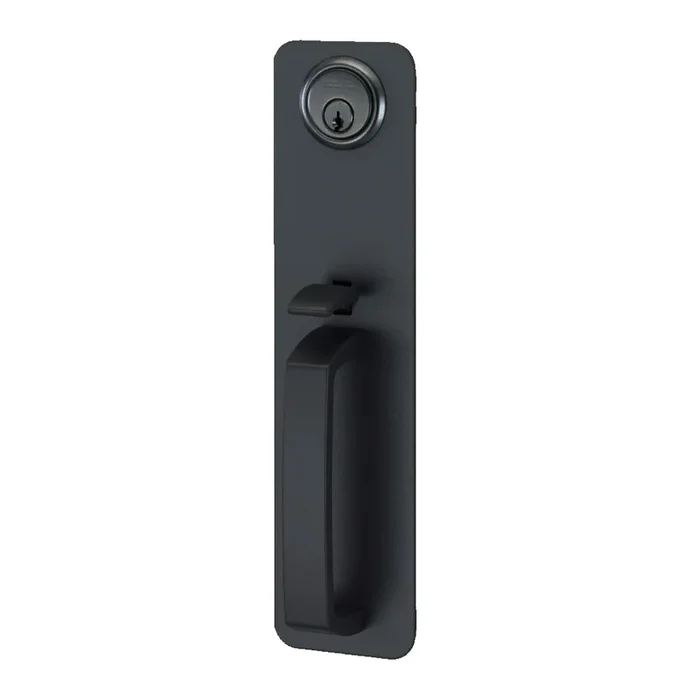

Von Duprin 230TP 622 22-Series Thumbpiece Trim US19
Von Duprin 230TP 622 22-Series Thumbpiece Trim US19 offers a robust solution for commercial applications with its Grade 1 thumbpiece pull trim designed for classroom function. This trim features a sleek flat black coated finish that not only enhances its aesthetic appeal but also ensures durability in high-traffic environments. Constructed from heavy 10-gauge steel, the escutcheon provides added strength and reliability, making it ideal for both metal and wood doors with a thickness ranging from 1-3/4″ to 2-1/4″. The non-handed design allows for versatile installation, accommodating various door configurations with ease. This trim is compatible with Von Duprin’s 22 Series exit devices, ensuring seamless integration into your existing hardware. The 230TP is also BAA qualified, demonstrating its compliance with federal regulations for public projects.With a limited three-year warranty, you can trust in the quality and performance of this product. Weighing just 5 lbs., it remains manageable for installation while providing a secure and functional exit solution. For building professionals and knowledgeable homeowners alike, the Von Duprin 230TP is a reliable choice that combines functionality with stylish design.
22-Series Thumbpc Trim US19
Grade 1 Thumbpiece Pull Trim, Classroom Function, Flat Black Coated Finish, Non-Handed
The 230EO, 230DT, 230NL and 230TP have a heavy 10 gauge (2.4mm) steel escutcheon. The 230L has a cast zinc 3/4″ (19mm) depth escutcheon.
Several Von Duprin Trims are available to choose from.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Application: 22 Series Devices
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4″ Mortise
Device Type: Trim
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Finish: 622/US19
Finish B Base Material: 622/US19
Finish Family: Black
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom
Origin: USA
Pack Height: 4.5″
Pack Length: 11″
Pack Qty: 1
Pack Volume: 297 in³
Pack Width: 6″
Restrictions: No
Reversible: Yes
Series: Von Duprin Trims
Ship Weight: 5 lbs.
Subtype: Exit Device Trim
Trim Design: Thumbpiece Pull
Trim Type: Pull
Type: Exit Devices
Unit of Measure: Each
