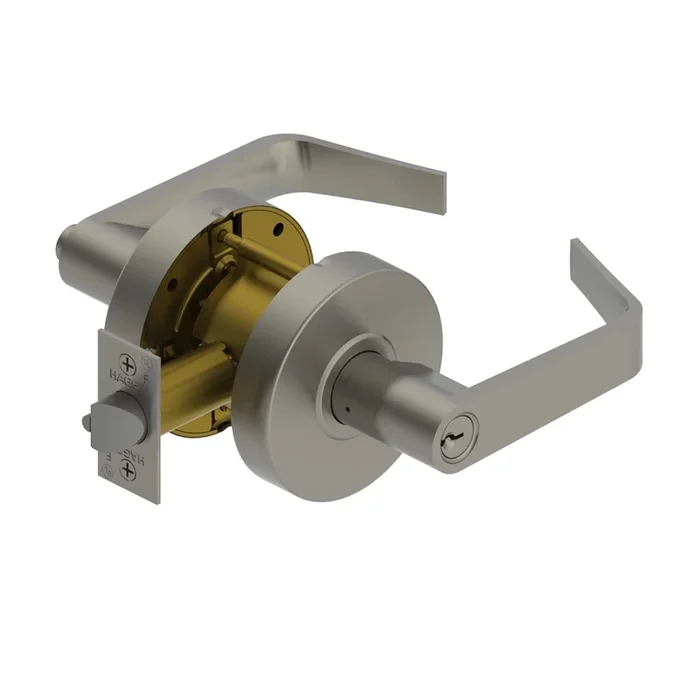

Hager 2553 SCC WTN US26D KD 2500 Entry Lock
Hager 2553 SCC WTN US26D KD 2500 Entry Lock delivers the ideal blend of performance and value, making it an excellent choice for commercial applications. This Grade 2 cylindrical lock features the Withnell lever design and is non-handed, allowing for versatile installation on various doors. Crafted with a conventional cylinder and ASA strike, it showcases a sleek satin chrome finish that complements any setting. Designed for durability, the lock chassis is constructed from heavy-gauge steel with a zinc dichromate coating for corrosion resistance. The 2500 Series lock is equipped with a 1/2″ throw stainless steel latchbolt, ensuring reliable security. It includes two brass keys per lock and is keyed differently with a Schlage C keyway, offering peace of mind for property owners. This lock is also fire-rated for 3 hours, making it suitable for safety compliance in commercial environments. Its installation is efficient, tailored for doors ranging from 1-3/8″ to 2″ thick, and it fits standard backsets of 2-3/4″ or 2-3/8″. With a limited 5-year warranty, the Hager 2553 SCC WTN US26D KD 2500 Entry Lock stands out as a dependable solution for any entryway, balancing security with ease of use.
2500 ENTRY LOCK
Grade 2 Entry Cylindrical Lock, Withnell Lever, Not Handed, Conventional Cylinder, ASA Strike, Satin Chrome
Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The inherent value of this lock and the product offering make our 2500 Series lock a perfect choice for a stocking program. As an economical alternative to other Grade 2 cylindrical locks, it offers both dependability and affordability.
Hager offers Grade 1 and Grade 2 Cylindrical Locks.
3400 and 3500 Series are Hager’s cylindrical locks.
3400 Knob:
- Certifications: – BHMA Certified ANSI A156.2, Series 4000, Grade 1
- ANSI A250.13 Severe Windstorm Resistant Component
- UL/cUL Listed for all functions up to 3 hours for ”A” label single doors
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Knob Diameter:- 2-9/32″ (58 mm)
- Rose Diameter:- 3″ (76 mm)
- Exposed Trim:Wrought Brass or Stainless Steel
- Lock Chassis:Heavy gauge steel, zinc dichromated for corrosion resistance
- Keys:Two brass keys per lock
- Cylinders:Brass 6-pin – Keyed Different – C Keyway
- Other keying options available from factory
- Door Thickness:- 1 3/8″ – 1 3/4″
- Backset:- 2 3/4″- 2 3/8″ Optional
- Latchbolt:- 1/2″ Throw – Stainless Steel- 2 1/4″ x 1 1/8″ Faceplate
- Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
- Strikes:ANSI 4-7/8″ x 1-1/4″ strike – standard,Optional strikes available
- Finishes:- US3, US32D
- Functions: – 10 – Passage, 17 – Dummy, 40 – Privacy, 50 – Office, 53 – Entry, 70 -Classroom, 80 – Storeroom
3400 Lever:
- Certifications:
- BHMA Certified ANSI A156.2, Series 4000, Grade 1
- ADA Compliant ANSI A117.1 Accessibility Code
- ANSI A250.13 Severe Windstorm Resistant Component
- UL/cUL Listed for all functions up to 3 hours for ”A” label single doors (for double door application, UL/cUL Listed when used with 3/4″ latchbolt)
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Lifetime warranty
- Exposed Trim:
- Lever: Cast zinc
- Rose: Wrought brass or stainless steel
- Intruder Classroom function has locking indicator arrow stamped on the interior rose
- Lock Chassis:
- Heavy gauge steel, zinc dichromated for corrosion resistance
- Free wheeling levers
- Thru-bolt mounting levers
- Rose Diameter:
- 3-17/32″ (90 mm) levers; 3″ (76 mm) knobs
- Keys:
- Two operating keys supplied per lock
- Cylinders/Cores:
- Brass 6-pin, keyed different – C Keyway
- Other keying options, including keyed 6-pin, available from factory
- Small Format Interchangeable Core option available
- SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
- Large Format Interchangeable Core option available
- LFIC zero bitted or combinated, brass 6-pin sold separately
- Door Thickness:
- Levers: 1-3/8″ – 2″ (35 mm – 51 mm)
- Backset:
- 2-3/4″ (70 mm) – standard
- 2-3/8″ (60 mm) – optional
- 3-3/4″ (94 mm) – optional
- 5″ (128 mm) – optional
- Latchbolt: – 1/2″ (13 mm) throw, stainless steel
- 1-1/8″ x 2-1/4″ (29 mm x 57 mm) faceplate
- Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
- Square corner faceplates standard, round corner available
- 3/4″ (19 mm) latch available
- Strikes:
- 3935 ASA 1-1/4″ x 4-7/8″ (32 mm x 124 mm) strike – Standard
- Finishes:
- US3, US4, US10, US10B, US26, US26D
- Functions: – 10 – Passage, 17 – Dummy, 40 – Privacy, 50 – Office, 53 – Entry, 70 –
- Classroom, 73 – Corridor, 80 – Storeroom, 95 – Classroom Security
- Options:
- Lead lined
- Tactile knurling
- Split finish
- Additional latchbolts and strikes available
- Standard Door Prep:
- 2-1/8″ (54 mm) diameter with thru-bolt holes (cross bore)
- Latch hole – 1″ (25 mm) diameter (edge bore)
- Lever Options:
- Archer, August, Withnell levers
- Installation:
- Comes pre-set for 1-3/4” thick doors for quicker installation
- Threaded mounting bracket adjusts to proper door thickness in seconds
- Only two screws needed to fully secure inside and outside assemblies to the door
- Screws will ratchet tight letting installer know the lockset is properly tightened
- Roses and levers snap on in seconds
Attributes
Manufacturer surcharge: 8.75%
Ansi Function: F109 – Entry/Office
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8″ – 2″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 53-Entrance/Office
Grade: Grade 2
Handing: Non-Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Leverknob Design: WTN – Withnell Lever
Limited Warranty: 5 Years
Of Keys: 2
Pack Qty: 1
Pins: 6
Series: Hager Cylindrical Locks
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Drive-In Dead Latch
Std Strike Height: 4-7/8″
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
