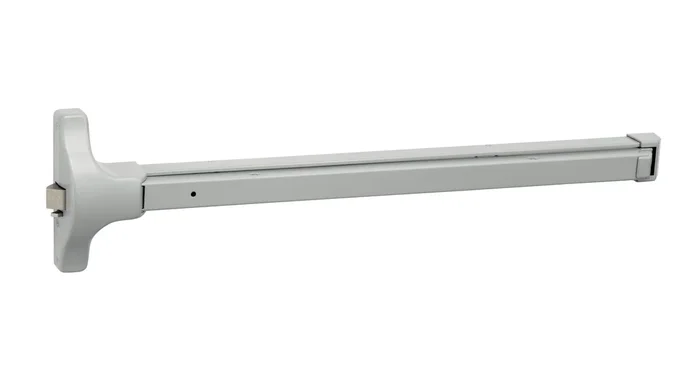

Accentra 210036689 3′ Rim Exit Device 689 – Aluminum Finish
ASSA Abloy Accentra 210036689 3′ Exit Only Rim Exit Device offers a robust and reliable solution for high-traffic commercial and institutional environments. Engineered with the Accentra Free Wheeling Lever Mechanism, this exit device ensures smooth operation and durability. It meets ANSI/BHMA A156.3 Grade 1 standards, signifying its exceptional quality and performance. This model is UL Listed for use on fire doors with a rating of up to 3 hours, enhancing safety in emergency situations. Designed under a certified ISO 9001 quality system, the Accentra 210036689 is built to last and comes with a limited 3-year warranty for added peace of mind.With a length of 32-3/8 inches, a 2-1/8 inch bar width, and a projection of 2-1/2 inches while extended, it is suitable for doors between 30 and 36 inches wide and a thickness of 1-3/4 inches. The aluminum finish (Finish Code 689) not only provides a sleek appearance but also ensures corrosion resistance. This exit device is an ideal choice for any facility that prioritizes efficiency and safety, making it a reliable addition to your door hardware lineup.
3′ Exit Only Rim Exit Device 689 Aluminum Finish
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
- ANSI / BHMA A156.3 Grade 1
- Limited 3 Year Warranty
- Features the Accentra Free Wheeling Lever Mechanism
- Designed and Manufactured Under a Certified ISO 9001 Quality System
- UL Listed for Use on Fire Doors Having a Rating Up to 3 Hours
Attributes
Alternate Codes: 003280, 143738, 2100-36 689, 2100-36-689, 210036689, 2100-36IN689, 210036IN689, 2100-689-36, 210068936, 286021, YAL2100-36IN689, YAL2100-689-36
Bar Style: Push Bar
Category: Exit Devices
Design: Rim
Device Length: 32-3/8″
Device Type: Rim Device
Dimension: 32-3/8″” Overall Length; 2-1/8″ Bar Width; 2-1/2″ Projection While Extended
Dogging: Hex Key
Door Thickness: 1-3/4″
Door Type: Metal, Wood
Door Width: 30″ to 36″ Doors
Exit Device Type: Rim Exit
Finish: Aluminum
Finish Code: 689
Finish Color: Satin Aluminum
Fire Rated: No
Function: Exit Only
Handing: Non-Handed
Hazardous Material: NO
Includes Cylinder: No
Manufacturer Warranty: Limited 3 Year Warranty
Material: Aluminum
Minimum Stile Size: 4-1/2″
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-05
Series: 2100 Series
Subcategory: Rim Exit Devices
Resources
- Cut Sheet
