Description

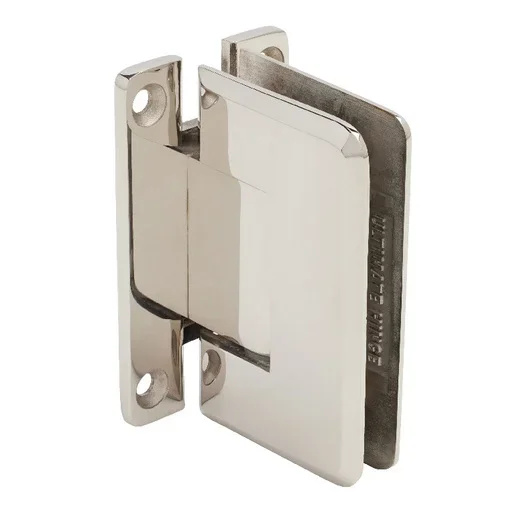

CRL ULT037PS 316 Polished Stainless Steel Ultimate 037 Series Wall Mount ‘H’ Hinge Back Plate
C.R. Laurence ULT037PS 316 Polished Stainless Steel Ultimate 037 Series Wall Mount ‘H’ Back Plate Hinge combines elegance with unparalleled durability, making it an ideal choice for both residential and hotel shower applications. Crafted from premium 316 stainless steel, this hinge is designed to withstand harsh conditions, particularly in seaside environments with high salt levels. Its self-centering feature enhances functionality, while the reversible 5-degree pivot pin allows for versatile installations. This hinge supports monolithic tempered glass ranging from 5/16″ (8 mm) to 1/2″ (12 mm) thick, holding up to 90 lbs. (40.8 kg) when using two hinges, or up to 130 lbs. (59 kg) with three. The maximum door widths are 30″ (762 mm) and 32″ (813 mm), respectively, ensuring compatibility with a variety of door designs.Available in two stunning finishes, the Ultimate Hinge not only meets aesthetic standards but also includes gaskets, screws, and glass fabrication dimensions for easy installation. With a three-year warranty and customizable pivot options for unique angles, this hinge is a reliable choice for any project that demands both style and strength. Periodic maintenance is recommended to preserve its beautiful finish.
316 Polished Stainless Steel Ultimate 037 Series Wall Mount ‘H’ Back Plate Hinge
- Self-Centering with Reversible 5 Degree Pivot Pin
- Available in Two Beautiful Finishes
- 3 Year Warranty
- Wall Mount
- Use Monolithic Tempered Glass
The
CRL Ultimate Series Hinge is named primarily for its combination of design elegance and service life. Featuring the same beautiful rounded corners and beveled edges of the Pinnacle Hinge, the Ultimate Hinge is constructed entirely of 316 stainless steel. This all-stainless construction gives the Ultimate Hinge a durability not usually found in brass hinges. The Ultimate has superior survivability in conditions of accelerated corrosion, such as seaside communities with high atmospheric salt levels. The Ultimate Hinge has stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. It also has the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Pinnacle, Roman, and Elite Series Hinges. A Custom Pivot Pin is available for “off-angle” installations.
STANDARD REVERSIBLE PIVOT PIN: Each Roman Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Roman Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate “off-angle” installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30″ (762 mm).
Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32″ (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16″ (8 mm) to 1/2″ (12 mm) Tempered Safety Glass
Special Feature: 316 Stainless steel construction provides greater durability in conditions subject to accelerated corrosion, such as seaside communities with high atmospheric salt levels.
Construction: 316 Stainless Steel
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. For more information contact CRL Shower Door Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Back Plate: ‘H’
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Height: 3-1/2 in. (89 mm)
Material: 316 Stainless Steel
Maximum Door Weight – 2 Hinges: 90 lbs. (40.8 kg)
Maximum Door Weight – 3 Hinges: 130 lbs. (59 kg)
Maximum Door Width – 2 Hinges: 30
Maximum Door Width – 3 Hinges: 32
Mounting Type: Wall Mount
Self- Centering: Yes
Series: Ultimate
Shipping Limitations: None
Width: 2-1/8 in. (54 mm)
Resources
- CRL Stainless Steel Disclaimer
- Frameless Shower Door Glass and Hardware Cleaning Instructions
- Frameless Shower Door Hardware Catalog
- Frameless Shower Door Quote Request Form
- ULT037 Template
