Description
NGP 416 36″ Aluminum Carpet Edge, 1/4″ x 1.5″
NGP 416 36″ Aluminum Carpet Edge, 1/4″ x 1-1/2″ is designed to provide a seamless transition between floor surfaces while enhancing safety and aesthetics. Constructed from durable aluminum alloy 6063 with T5 temper, this carpet edge measures 1-7/16″ wide and stands 1/2″ tall, ensuring a sturdy yet refined profile. Weighing just 0.19 lbs. per foot, the NGP 416 is lightweight yet robust enough to withstand daily wear and tear. Its smooth top surface not only offers a sleek finish but also helps prevent tripping hazards, making it an ideal choice for both commercial and residential applications. Included with the product are #10 x 1-1/2″ FH zinc plated wood screws, simplifying installation. For those opting for a dark bronze finish, it’s supplied with DKB thresholds, adding a touch of elegance to your interiors. The mill finish provides an uncoated look that can complement a variety of design schemes. Certified by UL to comply with stringent fire door standards, this carpet edge is suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. Elevate your flooring solutions with the reliability and quality of NGP.
36″ Aluminum Carpet Edge, 1/4″ x 1-1/2″
- #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
- Mill finish
- Smooth top
- Weight: .19 lbs./ft.
- 1-7/16″ wide x 1/2″ tall
- Aluminum alloy 6063, T5 temper
Attributes

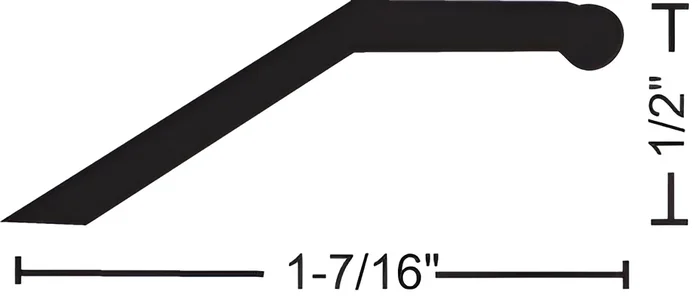

Dimensions: 1-7/16″ wide x 1/2″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Length: 36.0″
Material: Aluminum alloy 6063, T5 temper
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Weight: Weight: .19 lbs./ft.
