NGP 315DKB 36″ DKB Half Saddle Threshold, 1/4″ x 3″
NGP 315DKB 36″ DKB-finish Half Saddle Threshold showcases a robust design crafted from Aluminum alloy 6063 in T5 temper, ensuring durability and longevity. With dimensions measuring 3″ wide and 1/4″ tall, this threshold features a fluted top that adds both aesthetic appeal and functionality, making it an ideal choice for commercial restroom partitions. Weighing just .41 lbs./ft., the NGP 315DKB is lightweight yet sturdy, making installation straightforward. It comes with #10 x 1-1/2″ FH zinc-coated wood screws, ensuring secure fastening. The dark bronze finish not only enhances the threshold’s visual appeal but also provides a sleek, professional look that complements a variety of decor styles. This threshold is designed with compliance in mind; it meets ADA standards for accessible design, ensuring barrier-free access. Additionally, it is certified by UL, complying with relevant fire safety standards, making it suitable for applications involving hollow metal and wood fire doors rated up to three hours. For building professionals and knowledgeable homeowners looking for a reliable, stylish, and compliant threshold solution, the NGP 315DKB Half Saddle Threshold stands out as an excellent choice.
36″ DKB-finish Half Saddle Threshold, 1/4″ x 3″
- #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
- Fluted top

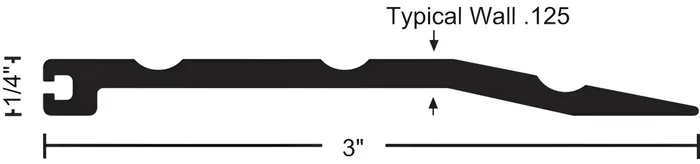

- Typical wall thickness .125″
- 3″ wide x 1/4″ tall
- Weight: .41 lbs./ft.
- Aluminum alloy 6063, T5 temper
- Dark bronze finish
Attributes
Dimensions: 3″ wide x 1/4″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Length: 36.0″
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness .125″
Weight: Weight: .41 lbs./ft.
