Description
NGP 42436 National Guard Products Threshold
Certifications
| ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities. | |
| CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes. | |
| POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes. |
- Aluminum alloy 6063, T5 temper

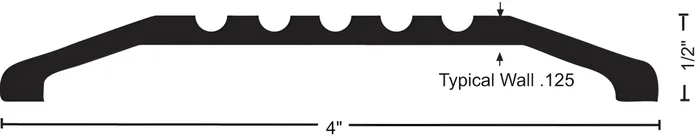

- 4″ wide x 1/2″ tall
- Fluted top
- Typical wall thickness .125″
- Weight: .61 lbs./ft.
- #10 x 1-1/2″ FH zinc plated wood screws included
- Mill finish
- Slip resistant SIA finish
Attributes
Application: CM
Clazz: NG
Color: Clear Anodized Aluminum
Country of Origin: Usa
Dimensions: 4″ wide x 1/2″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included
Finish: Mill finish
Finish : Milled Aluminum
Fire Rated: 3 Hours
Flange Material: Mill
Hardware: #10 x 1-1/2″ FH zinc plated wood screws
Item Class : 4″ x 1/2″ x 36″ Saddle Threshold
Item Type Keyword: Threshold
Length: 36.0″
Limited Warranty: Limited 5 Year Warranty
Material: Aluminum alloy 6063, T5 temper
Number Of Inners: 1
Product Dimension: 36″ x 4″ x 1/2″
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standards: UL Classified UL10C; ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Saddle Threshold
Wall Thickness: Typical wall thickness .125″
Weight: Weight: .61 lbs./ft.
