Description
NGP 8136 36 National Guard Products Threshold
THRESHOLD BUMPER 36 IN THRESHOLD BUMPER 36 IN 1/4 INCH HIGH, 3 FOOT MILL FINISH

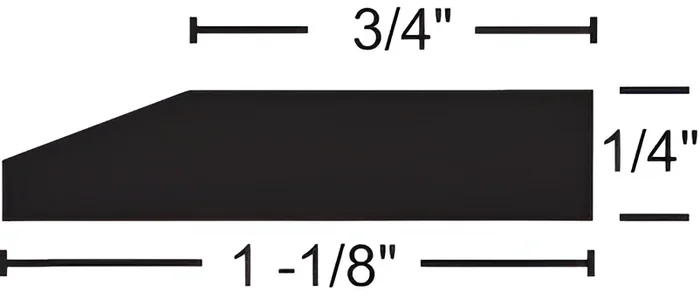

- 1-1/8″ wide x 1/4″ tall
- Mill finish
- Weight: .30 lbs./ft.
- Aluminum alloy 6063, T5 temper
- Threshold assembly component
Attributes
Dimensions: 1-1/8″ wide x 1/4″ tall
Finish: Mill finish
Finish : Milled Aluminum
Fire Rated: 3 Hours
Length: 36.0″
Material: Aluminum alloy 6063, T5 temper
Series: NGP Thresholds
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Threshold
Type: Hinges and Pivots
Weight: Weight: .30 lbs./ft.
