Description
NGP 5070CL 36″ Self-Adhesive Silicone Double Shark Fin Smoke Seal
NGP 5070CL 36″ Self-Adhesive Silicone Double Shark Fin Smoke Seal is an exceptional solution for ensuring energy efficiency and safety in commercial restroom environments. Crafted from high-quality self-adhesive silicone, this product boasts excellent abrasion resistance and moisture resistance, making it ideal for both interior and exterior applications. With a flexible design featuring double shark fins, the seal effectively manages air infiltration while forming a robust barrier against smoke and drafts. This smoke-rated seal not only meets BHMA certification to ANSI/BHMA A156.22 performance tests for heat, cold, and energy performance but also demonstrates resilience to aging, UV radiation, and various chemicals. It operates within a wide temperature range of -100°F to 500°F, ensuring reliability in diverse conditions. The NGP 5070CL seal measures 1/2″ wide and 1/4″ tall, and is available in lengths of 4′, 7′, 8′, and 9′, allowing for versatile installation options. It features a modified acrylic pressure-sensitive adhesive protected by a release liner, providing high initial adhesion and long-term holding power. With a shelf life of one year when stored correctly, this smoke seal is the perfect choice for building professionals looking to enhance safety and energy efficiency in their projects.
36″ Self-Adhesive Silicone Double Shark Fin Smoke Seal
- Shelf Life of Adhesive Prior to Installation is One Year when Stored at 75°F and 50% Relative Humidity or Less
- Flame-Resistant
- Bhma Certified to Ansi/Bhma A156.22 Performance Tests for Heat, Cold, Air Infiltration and Energy Performance
- Moisture-Resistant
- Good Abrasion Resistance
- Modified Acrylic Pressure Sensitive Adhesive Protected by Release Liner
- Provides High Initial Adhesion and Long Term Holding Power for Permanent Mounting in Exterior or Interior Locations
- Flexible Fins
- Reach and RoHS Compliant
- Available in 4′, 7′, 8′ and 9′ Lengths
- Self-Adhesive Silicone
- Clear
- Resistant to Aging, Weathering, Uv Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
- Smoke-Rated for Perimeter and/or Meeting Edge Astragal Applications
- Temperature Range -100°F To 500°F

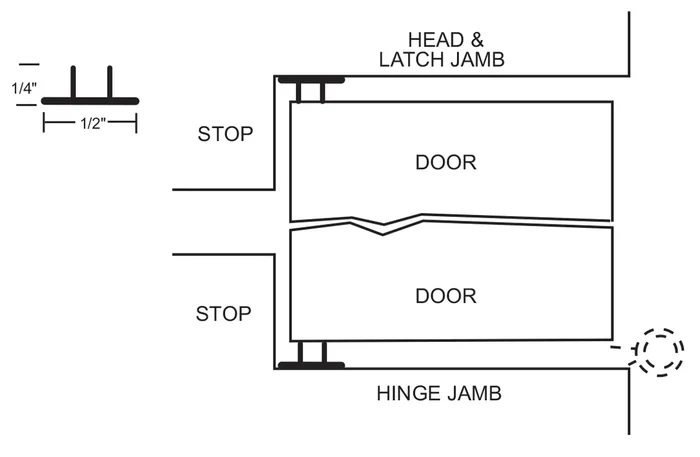

- 1/2″ Wide x 1/4″ Tall
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Air Infiltration and Energy Performance
- Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
- End Use Temperature Range of Adhesive, Long Term Exposure -30°F Up To 250°F
Attributes
BHMA: Bhma Certified to Ansi/Bhma A156.22 Performance Tests for Heat, Cold, Air Infiltration and Energy Performance
Dimensions: 1/2″ Wide x 1/4″ Tall
Finish: Clear
Fire Rated: Flame-Resistant
Length: 36.0″
Moisture Resistant: YES
Resistance: Resistant to Aging, Weathering, Uv Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
Ro HS: Reach and RoHS Compliant
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -100°F To 500°F
