Description
NGP 5075C 36 National Guard Products Weatherstripping
- Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
- Shelf Life of Adhesive Prior to Installation is One Year when Stored at 75°F and 50% Relative Humidity or Less
- Temperature Range -80°F To 600°F
- Bhma Certified to Ansi/Bhma A156.22 Performance Tests for Heat, Cold, Air Infiltration and Energy Performance

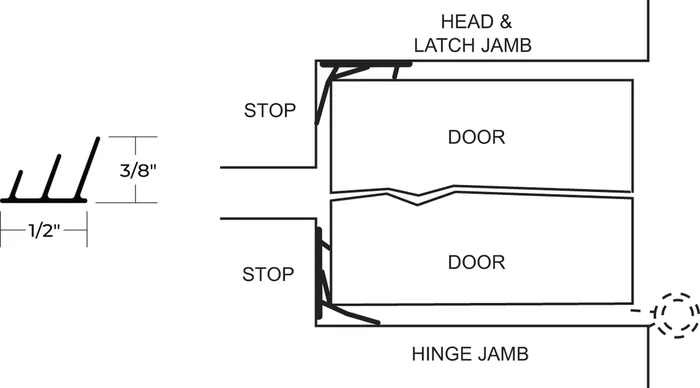

- 1/2″ Wide x 3/8″ Tall
- Self-Adhesive Silicone Rubber
- Good Abrasion Resistance
- Modified Acrylic Pressure Sensitive Adhesive Protected by Release Liner
- All Colors Available in 17′, 20′, 21′, 25′ and 300′ Rolls
- Charcoal
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Air Infiltration and Energy Performance
- End Use Temperature Range of Adhesive, Long Term Exposure -30°F Up To 250°F
Attributes
BHMA: Bhma Certified to Ansi/Bhma A156.22 Performance Tests for Heat, Cold, Air Infiltration and Energy Performance
Color: Charcoal
Dimensions: 1/2″ Wide x 3/8″ Tall
Finish: Gray
Finish : Applied
Fire Rated: 3 Hours
Length: 36.0″
Resistance: Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstripping
Temperature Range: Temperature Range -80°F To 600°F
Type: Hinges and Pivots
