Description

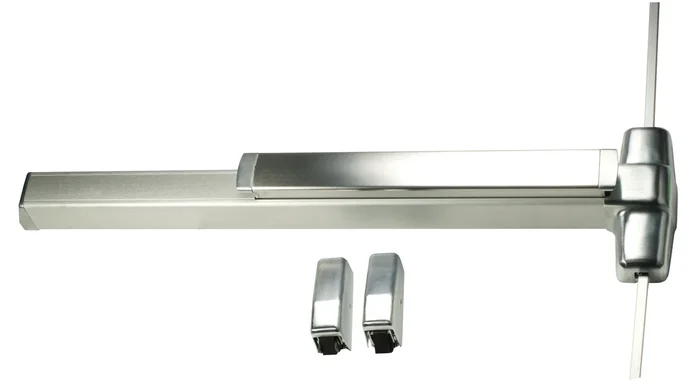

Von Duprin 9827EOF26D4 4′ Fire Rated Surface Vertical Rod Exit Device, Satin Chrome Finish
Von Duprin 9827EOF26D4 4′ Fire Rated Surface Vertical Rod Smooth Case Exit Device in a Satin Chrome finish combines durability and functionality, making it an essential choice for public buildings. Renowned for its exceptional quality and performance, Von Duprin has been a trusted name in safety products for decades.This exit device features surface vertical rod latching and is designed as an exit-only solution, ensuring ease of use in emergency situations. The deadlocking latchbolt enhances security while maintaining performance at standard device costs. With a UL fire rating, this device meets stringent safety standards, providing peace of mind in critical moments. Engineered to fit 1-3/4″ thick doors, the Von Duprin 9827EOF26D4 is suitable for 4′ door widths and comes with a screw pack compatible with both metal and wood doors up to 2-1/4″ thick. Its overall length measures 45″, with a head dimension of 8″ x 2-3/4″ and a projection of 3-13/16″. Crafted from forged brass, this device is built to last. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Von Duprin 9827EOF26D4 is a reliable choice for those prioritizing safety and efficiency in their building projects.
4′ Fire Rated Surface Vertical Rod Smooth Case Exit Device 626 Satin Chrome Finish
A mainstay in public buildings for decades Von Duprin’s safety products are known for their unparalleled quality and performance. From innovative exit devices to electronic access control solutions and accessories, Von Duprin never compromises when security is at stake. In fact, an independent study of more than 100 commercial facilities across the U.S. documented that Von Duprin exit devices require significantly less maintenance over a 30-year period than any other brand. The quality of Von Duprin’s exit devices provides confidence and peace of mind in critical moments.
- Includes Screw Pack for 1-3/4″ (44mm) and 2-1/4″ (57mm) Thick Metal or Wood Doors
- Surface Vertical Rod Latching
- Deadlocking Latchbolt Provides Security and Improved Performance at Standard Device Cost.
- Exit Only, No Trim
- UL Fire Rated Device
Attributes
Category: Exit Devices
Clazz: VD
Color: Satin Chrome
Country of Origin: Usa
Device Length: 45″
Device Type: Vertical Rod Device
Dimension: 45″ Overall Length, 8″ x 2-3/4″ Head, 2-1/4″ x 2-1/4″ Bar, 3-13/16″ Projection
Door Thickness: 1-3/4″
Door Width: 4′ Door
Finish: Satin Chrome
Finish Code: 626 (US26D)
Fire Rated: Yes
Function: Exit Only
Grade: Grade 1
Hazardous Material: NO
Includes Cylinder: No
Item Class : 4′ Fire Rated Surface Vertical Rod Smooth Case Exit Device
Item Type Keyword: Exit
Limited Warranty: Limited 3 Year Warranty
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Forged Brass
Minimum Stile Size: 3-11/16″
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
PO date: 2024-10-15
Product Dimension: 45″ Overall Length, 8″ x 2-3/4″ Head, 2-1/4″ x 2-1/4″ Bar, 3-13/16″ Projection
Series: 98 Series
Strike: 299F and 304L Strikes
Subcategory: Vertical Rod Exit Devices
Subtype: Vertical Rod Devices
Type: Exit Devices
Ul Listing Type: UL Listed
