Description

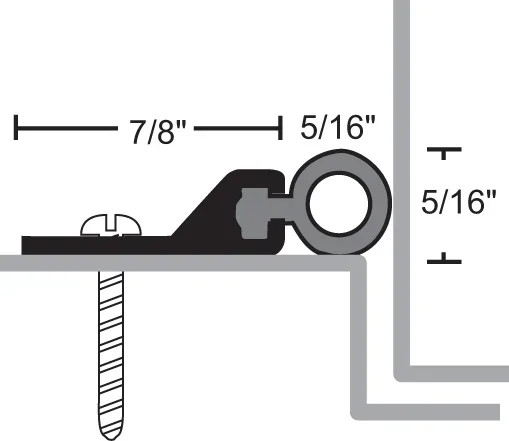

NGP 161VA 48″ Anodized Aluminum Vinyl Perimeter Seal
NGP 161VA 48″ Anodized Aluminum Vinyl Perimeter Seal offers an effective solution for enhancing restroom partitions with its durable construction and reliable performance. Made from Aluminum Alloy 6063 with T5 temper, this perimeter seal is designed to withstand various environmental conditions, ensuring longevity and resilience. The thermoplastic polymer, specifically formulated with an environmentally friendly bio-based plasticizer, provides an economical choice without compromising quality. With a temperature range of 0°F to 140°F, it is both flame-resistant and moisture-resistant, making it suitable for numerous settings. Its black vinyl component adds a sleek finish, while the anodized aluminum enhances both aesthetics and durability. Installation is straightforward, thanks to the furnished #6 x 3/4″ stainless steel sheet metal screws, which come with slotted holes for easy adjustment. This product is also certified by UL for compliance with multiple fire safety standards, ensuring peace of mind for building professionals and homeowners alike.Whether you’re upgrading existing partitions or installing new ones, the NGP 161VA perimeter seal is a dependable choice that combines functionality with style, providing a seamless fit and enhanced protection against air infiltration.
48″ Anodized Aluminum Vinyl Perimeter Seal
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Temperature Range 0°F to 140°F
- Vinyl is Black
- Anodized Aluminum
- Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
- #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
- Economical
- Oxidative Degradation From Age and Exposure to Cold, Heat and UV Causes Hardening, Loss of Memory and Resilience, Cracking, Crazing and Discoloration
- Screw Holes Slotted for Adjustment
- Temperature Range -40°F to 250°F
- Thermo-Plastic Vulcanizate (TPV)
Attributes
Color: Vinyl is Black
Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Fire Rated: Flame-Resistant
Length: 48.0″
Material: Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
Moisture Resistant: YES
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature Range 0°F to 140°F
