Description
NGP 350BR 48″ Architectural Bronze Half Saddle Threshold, 1/2″ x 5″
NGP 350BR 48″ Architectural Bronze Half Saddle Threshold, 1/2″ x 5″ is designed to provide a seamless transition between different flooring surfaces while enhancing accessibility. Made from Alloy CDA 385 (Copper Alloy No. C38500), this threshold features a robust construction with a typical wall thickness of .110″. Measuring 5 inches wide and 1/2 inch tall, it includes a fluted top that not only adds aesthetic appeal but also helps manage foot traffic effectively. This threshold is ADA compliant when installed with a non-beveled edge flush with the flooring, ensuring that it meets the highest standards for accessible design. Weighing 2.10 lbs. per foot, it is lightweight yet durable enough for commercial applications. The included #10 X 1-1/2″ brass wood screws come in an antique bronze finish, perfectly complementing the architectural bronze satin finish (similar to US4) of the threshold. Certified by UL for both fire door applications and positive pressure, the NGP 350BR meets the requirements of NFPA 80 and NFPA 252, making it suitable for use with hollow metal fire doors rated up to three hours and wood fire doors rated up to 90 minutes. Trust in NGP for quality restroom partition hardware that combines functionality and style.
48″ Architectural Bronze Half Saddle Threshold, 1/2″ x 5″

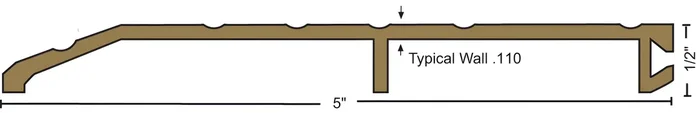

- Typical wall thickness .110″
- Fluted top
- ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4″ vertical rise occurs
- Weight: 2.10 lbs./ft.
- Architectural Bronze satin finish (728) similar to US4
- Alloy CDA 385 (Copper Alloy No. C38500)
- #10 X 1-1/2″ brass wood screws included. Antique bronze finish screws provided with dark bronze threshold
- 5″ width x 1/2″ tall
Attributes
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4″ vertical rise occurs
Dimensions: 5″ width x 1/2″ tall
Finish: Architectural Bronze satin finish (728) similar to US4
Length: 48.0″
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Wall Thickness: Typical wall thickness .110″
Weight: Weight: 2.10 lbs./ft.
