Description
NGP 135NDKB 48″ DKB Aluminum Neoprene Bulb Perimeter Seal
NGP 135NDKB 48″ DKB-finish Aluminum Neoprene Bulb Perimeter Seal offers a robust and reliable solution for enhancing the performance of your restroom partitions. Crafted from high-quality Aluminum Alloy 6063 in T5 Temper, this perimeter seal combines durability with excellent functionality. The synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix ensures very good abrasion resistance, tensile strength, and memory, making it a dependable choice for commercial environments. This seal is flame-resistant and moisture-resistant, making it suitable for a variety of applications, while its impressive temperature range of -81°F to 275°F allows it to perform effectively in diverse conditions. Additionally, it boasts good resistance to ozone, sunlight, and aging, ensuring long-lasting performance. The NGP 135NDKB is BHMA Certified to ANSI/BHMA A156.22 performance tests, which guarantees its reliability against heat and cold. The product comes with #6 x 3/4″ stainless steel sheet metal screws that are furnished for easy installation, and the slotted screw holes allow for adjustment during fitting. With a sleek dark bronze finish and a classic black color, this perimeter seal not only enhances functionality but also complements the aesthetic of any restroom environment.

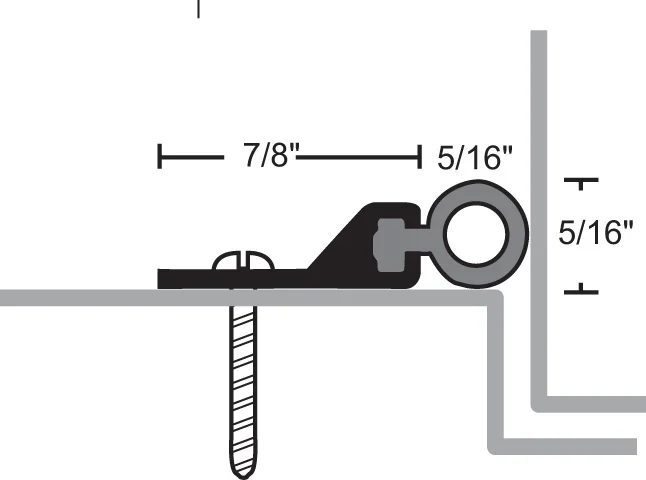

48″ DKB-finish Aluminum Neoprene Bulb Perimeter Seal
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Good Resistance to Ozone, Sunlight and Aging
- Color is Black
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- Temperature Range -81°F to 275°F
- #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
- Dark Bronze Finish
- Screw Holes Slotted for Adjustment
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 48.0″
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
