Description

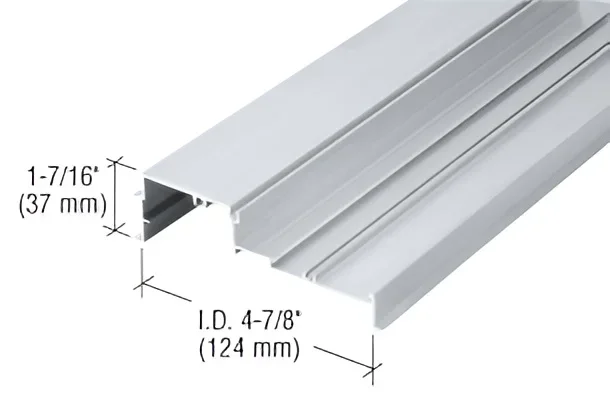

CRL 487X50299 487 Mill OfficeFront Glazing Base – 24’2″
C.R. Laurence 487X50299 487 Mill OfficeFront Glazing Base is an essential component for modern commercial spaces, measuring an impressive 24′-2″ (7.3 M) in stock length. This versatile glazing base is specifically designed to work seamlessly with the 487X505 Floor Track and 487X504 Glazing Stop, making it an ideal choice for applications such as sidelites, borrowed lites, and cased openings. Constructed for ease of installation, the 487 Series features clip joinery for quick on-site assembly and screw spline assembly for efficient shop fabrication. This flexibility allows for shipping options that include knocked down units, open panel assemblies, or shop-glazed panels, ensuring a streamlined installation process. Available for glazing thicknesses of 1/4″, 3/8″, 1/2″, and 9/16″ (6, 10, 12, and 14 mm), this glazing base is designed for top load gaskets, accommodating various glazing types, including tempered and tempered laminated glass. Choose from clear, bronze, or black anodized finishes, with custom painted options available upon request.C.R. Laurence’s commitment to quality and innovation ensures that the 487X50299 Glazing Base meets the demands of today’s architectural projects, providing both aesthetic appeal and structural integrity.
487 Mill OfficeFront Glazing Base – 24′-2″
CRL 487 Series Office Partition Extrusions are available in stock length form for many applications including Sidelites, Borrowed Lites, and Cased Openings. The unique framing members are designed for both clip joinery for quick on site installation, and screw spline assembly for shop fabrication allowing units to be shipped to the job site knocked down, open panel assembly, or as shop glazed panels ready for installation into finished drywall openings.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Mill
Glazing Thickness: 1/2 in. (12 mm)
Glazing Type: Tempered, Tempered Laminated
Length: 290 in. (7366 mm)
Shipping Limitations: None
Resources
- 487 AR .25 Lam X .25 Lam Acoustical Performance ASTM E90 H0258.02-303-11 05-26-2017
- 487 AR .25 Mono X .25 Mono Acoustical Performance ASTM E90 H0258.01-303-11 05-26-2017
- 487 Pair Air Leakage ANSI-UL-1784-102288099MID-003 03-30-2016
- 487 Pair Product Evaluation PEV 102288099MID-008 04-29-2016
- 487 Sealed Acoustical Performance ASTM E90 TL15-125 Test Report 02-17-2015
- 487 Series Center Glazed office Partitions Overhead Concealed Closer Installation Instructions
- 487 Series Office Partitions 3-Part Specification
- 487 Unsealed Acoustical Performance ASTM E90 TL15-124 Test Report 02-17-2015
- 487-AR .25 Lam X .25 Mono Acoustical Performance ASTM E90 H0258.03-303-11 05-26-2017
- 487-AR .25 Lam X .38 Lam Acoustical Performance ASTM E90 H0258.04-303-11 05-26-2017
