Description

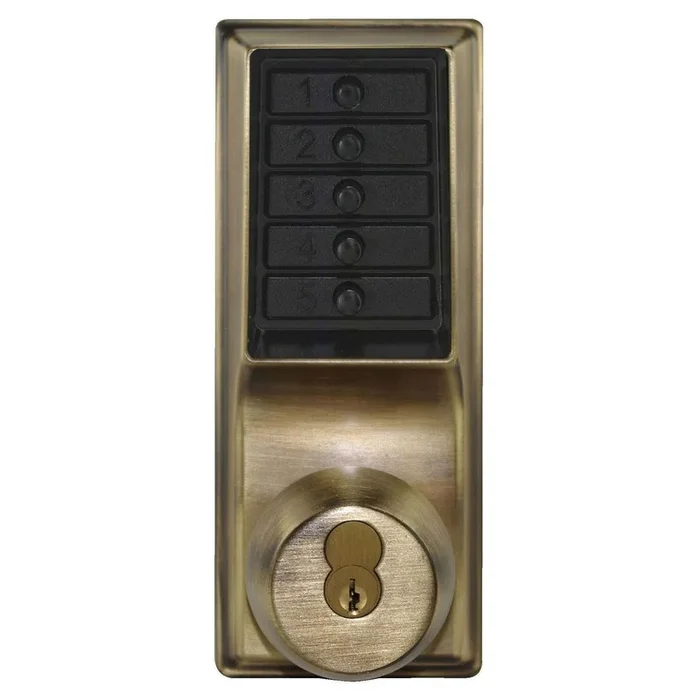

Dormakaba 1021C-05-41 Pushbutton Lock
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
- Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on “A” labeled doors
- Number of Codes: Single access code—one easy-to-manage code for all users
- Programming: Lock is easily programmed via keypad without removing lock from the door
- Handing: Factory-handed for left-hand doors; easily field reversible
- Operation Modes: Pushbutton Access Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models). Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
- Pushbutton Access
- Passage (select models)—allows access without using the lock entry code.
- Feature activated from the inside with a thumbturn or key (included with all passage feature models).
- Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
- Economical: A cost effective access control solution
Attributes
Manufacturer surcharge: 7.0%
Access Function: Field Configurable
Access Type: Mechanical
Accessible: No
Ada Compliance: No
Alternate Codes: 1021C5B, 119346, 880930, SIM1021C5B
Ansi: 156.2
Base Material: Brass
Category: Access Control, Electric Locks, Lock Sets, Mechanical Locks, Standalone, Standalone Locks, Standalone/Pushbutton Locks
Commercial Residential: Commercial
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Door Thickness: 1-3/8″ – 2-1/4″
Finish: 609/US5
Finish Color: Antique Brass
Finish : Satin Brass Blackened Satin Relieved Clear Coated
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Combination Entry, Key Override
Grade: Grade 1
Handing: Field Reversible, Left Hand
Installation: Commercial
Keypad Type: Mechanical
Knob/ Lever Style: Knob
Latch Backset Dimension: 2-3/4″
Leverknob Design Family: Bell Knob
Limited Warranty: 3 Years
Lock Category: Cylindrical Lock
Lock Platform: Cylindrical Lock
Pack Qty: 1
Proximity Format: Pushbutton Combination
Series: Simplex 1000 Series
Series Name: Simplex
Ship Weight: 7.8 lbs.
Std Strike Type: ASA
Subtype: Pushbutton Lock
Type: Integrated and Pushbutton
Ul Listing: ANSI 156.2 Grade 1
Unit of Measure: Each
