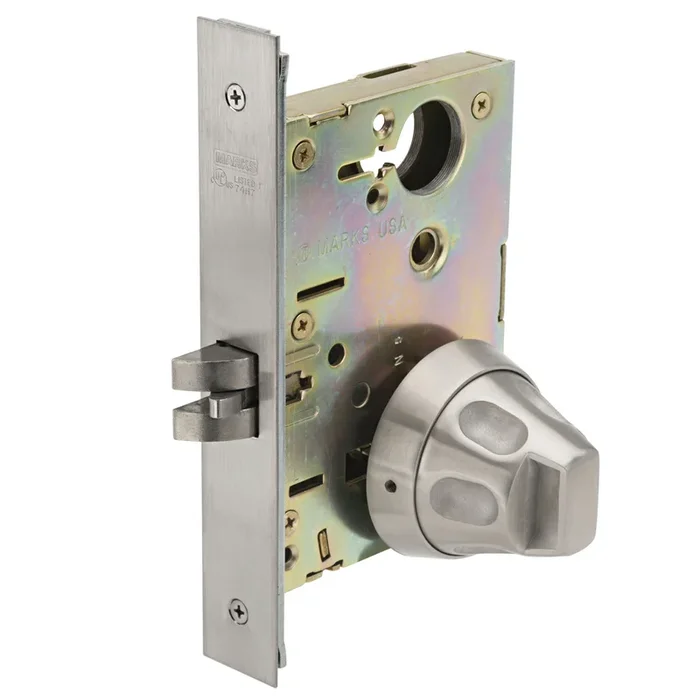

Marks Hardware 5SS19B/32D 5 Series Antiligature Lock Instructions
Marks 5SS19B/32D 5 Series Antiligature Lock is a Grade 1 entrance mortise lock engineered for durability and safety in behavioral health care settings. This lock features a robust satin stainless steel finish that not only looks professional but also withstands the rigors of high-traffic environments. With a unique anti-ligature lever design, it effectively restricts the attachment of harmful items, enhancing security and promoting safety. The Survivor Series locksets come with a lifetime mechanical warranty, reflecting their superior quality and reliability. UL listed for a 3-hour fire rating, this lock satisfies stringent safety standards and ADA requirements, making it an ideal choice for commercial applications.Installation is straightforward, as this mortise lock is field reversible and accommodates standard door thicknesses of 1-3/4″. The solid stainless steel knobs or levers are recessed into thru-bolted roses, providing both strength and ergonomic comfort. Additionally, the safety lever ensures accessibility for handicapped individuals. With a keyed different system and a six-pin configuration, the Marks 5SS19B/32D lock offers enhanced security while meeting ANSI specifications A156.13-2005 for series 5000, Grade 1. Choose this lock for a blend of functionality, safety, and enduring quality.
5 Series Antiligature Lock
Grade 1 Entrance Mortise Lock, Mortise Cylinder, Anti-Ligature Lever, Satin Stainless Steel Finish, Field Reversible
Marks USA Survivor Series locksets are the most durable cylindrical lever locksets. The Survivor Series locksets are backed by Marks lifetime mechanical warranty. All functions are available in six standard finishes, are UL Listed for 3-hour fire rating, and satisfy ADA requirements.
Designed to restrict the attachment of lines, laces, etc. to door knobs and levers.
To address Life Safety and Security, Managed Liability and Accident Prevention, Marks USA has developed Institutional Life Safety Locksets designed for Behavioral Health Care Institutions. These mortise locksets meet or exceed all operational and security tests of ANSI specifications A156.13-2005 for series 5000, Grade 1.
Trim Specifications:
- Solid stainless steel interior and exterior tapered knobs or levers recessed into thru-bolted roses.
- Safety knobs with recessed grip and finger indents (Patent #D587556).
- Safety lever for handicapped access on clutch operated Mortise lock.
- Ergonomically designed grooved turn knob for deadbolt functions
Attributes
Accessible: No
Ada Compliance: No
Ansi: A156.13
Ansi Function: F21
Baa Qualified: Yes
Burglar Rated: No
Cam Number: 2102
Cam Type: Schlage L
Case Dimensions: 4-3/16″ x 6-1/16″
Commercial Residential: Commercial
Country of origin: USA
Cylinder Length: 1-1/8″
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/4″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: B-Entrance
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Leverknob Design: SS19-Anti-Ligature Lever
Leverknob Design Family: Anti-Ligature Lever
Limited Warranty: Lifetime
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Projection: 2-1/2″
Restrictions: None
Screws: Combination
Series: Marks Institutional Life Safety Mortise Locks
Std Keyway: Schlage C
Std Strike Height: 4-7/8″
Std Strike Number: 9035
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C
Unit of Measure: Each
Upc: 7.85E+11
Resources
- Marks Institutional Life Safety Mortise Locks Cut Sheet
