Description

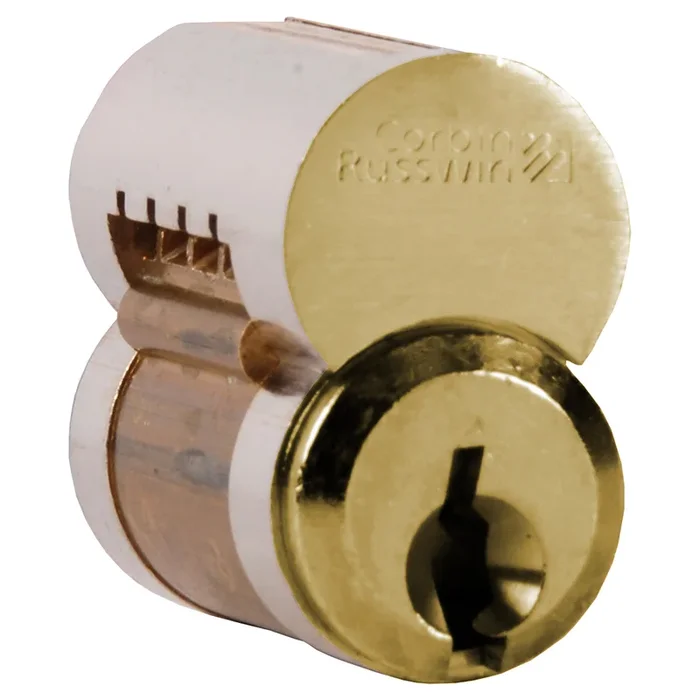

Corbin Russwin 8000-D1 606 6-Pin LFIC Core D1 Keyway
Corbin Russwin 8000-D1 606 6-Pin LFIC Core D1 Keyway offers a robust solution for your locking needs, featuring a 6-pin interchangeable core with a D1 keyway and an elegant satin brass finish. Crafted from solid brass, this core is designed for compatibility with Corbin Russwin 8000 Series interchangeable cores, available in both 6 or 7-pin configurations, ensuring versatility across various applications. The interchangeable core system allows for effortless rekeying, making it an ideal choice for building management in office buildings, hotels, schools, hospitals, and universities. This feature not only provides significant time savings during rekeying but also reduces costs over the building’s lifespan. Non-technical personnel can rekey the lock without the need to remove any hardware from the door, enhancing convenience. The core operates smoothly with all standard keys, while a special control key simplifies the rekeying process by allowing access to specific shear lines within the core. With options for concealed key control and temporary construction cores available, the Corbin Russwin 8000-D1 is a reliable choice for commercial installations where security and efficiency are paramount. Backed by a one-year limited warranty, this product exemplifies quality and performance for demanding environments.
6-Pin LFIC Core D1 Keyway
6-Pin Interchangeable Core, D1 Keyway, Satin Brass Finish
Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.
Interchangeable cores provide rekeying convenience for virtually all types of keying systems.
Interchangeable cores like thissavetime and money over the life of a building.
- Advantages
Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.
- Applications
IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.
- Operations
All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.
- Cores
Cores are available in 6-pin (standard), 7-pin, security and Pyramid.
- Construction Keying
Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.
- Core Marking
Concealed Key Control (CKC) is available for all Corbin Russwin cores.
Attributes
Baa Qualified: Yes
Base Material: Brass
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: LFIC Core
Finish: 606/US4
Finish Family: Matte Brass
Installation: Commercial
Keying: 0-Bitted
Keys: Blank
Limited Warranty: 1 Year
Of Keys: 2
Origin: USA
Pack Height: 2.5″
Pack Height 2: 6″
Pack Length: 2.75″
Pack Length 2: 16.25″
Pack Qty: 1
Pack Volume: 13.75 in³
Pack Volume 2: 1023.75 in³
Pack Width: 2″
Pack Width 2: 10.5″
Pins: 6
Series: Interchangeable Core Cylinders
Ship Weight: 0.2 lbs.
Std Keyway: D1
Subtype: LFIC Core
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 32
Resources
- Interchangeable Core Cylinders Cut Sheet
- Key Systems Catalog
- Video: Interchangeable Core Installation
