Description

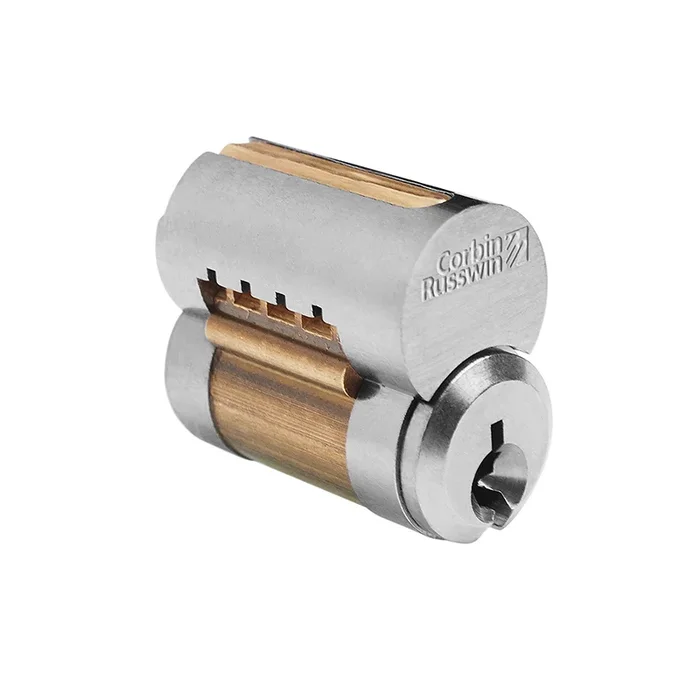

Corbin Russwin 8000-L2 626 6-Pin LFIC Core L2 Keyway
Corbin Russwin 8000-L2 626 6-Pin LFIC Core L2 Keyway is a highly efficient solution for modern locking systems. This interchangeable core features a durable satin chrome finish, ensuring both aesthetic appeal and long-lasting performance. Designed to fit Corbin Russwin’s 8000 Series Mortise and Rim Housings, this 6-pin LFIC core allows for quick and convenient rekeying without the need to remove the hardware from the door. Ideal for a wide range of applications, including office buildings, hotels, schools, hospitals, and universities, this core enhances security while saving time and money over the life of the building. The special control key operates at a separate shear line, enabling simple core removal and installation, making rekeying accessible for non-technical personnel. Constructed from solid brass, this core is built to withstand the rigors of everyday use. It is compatible with both 6-pin and 7-pin configurations and supports various keying systems. Additionally, Corbin Russwin offers options for concealed key control and temporary construction cores for added security. With a one-year limited warranty, the Corbin Russwin 8000-L2 ensures peace of mind and reliability for all your locking needs.
6-Pin LFIC Core L2 Keyway
6-Pin Interchangeable Core, L2 Keyway, Satin Chrome Finish
Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.
Interchangeable cores provide rekeying convenience for virtually all types of keying systems.
Interchangeable cores like thissavetime and money over the life of a building.
- Advantages
Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.
- Applications
IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.
- Operations
All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.
- Cores
Cores are available in 6-pin (standard), 7-pin, security and Pyramid.
- Construction Keying
Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.
- Core Marking
Concealed Key Control (CKC) is available for all Corbin Russwin cores.
Attributes
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: LFIC Core
Finish: 626/US26D
Finish Family: Matte Silver
Installation: Commercial
Keying: 0-Bitted
Keys: Blank
Limited Warranty: 1 Year
Of Keys: 2
Origin: USA
Pack Height: 2.5″
Pack Height 2: 6″
Pack Length: 2.75″
Pack Length 2: 16.25″
Pack Qty: 1
Pack Volume: 13.75 in³
Pack Volume 2: 1023.75 in³
Pack Width: 2″
Pack Width 2: 10.5″
Pins: 6
Series: Interchangeable Core Cylinders
Ship Weight: 0.2 lbs.
Std Keyway: L2
Subtype: LFIC Core
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 32
Resources
- Interchangeable Core Cylinders Cut Sheet
- Key Systems Catalog
- Video: Interchangeable Core Installation
