Description

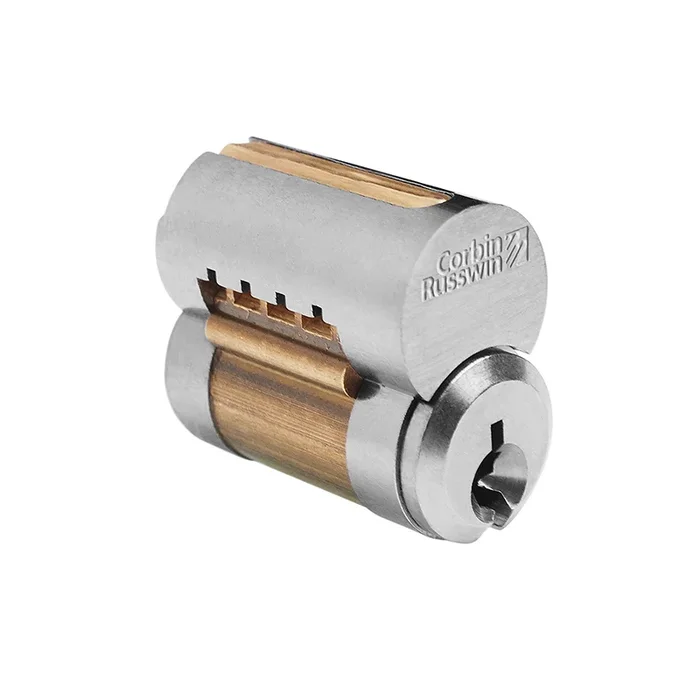

Corbin Russwin 8000-N4 626 6-Pin LFIC Core N4 Keyway
Corbin Russwin 8000-N4 626 6-Pin LFIC Core N4 Keyway offers a robust solution for enhancing security in commercial settings. This 6-pin interchangeable core features a durable satin chrome finish, ensuring both aesthetics and resilience. Designed to fit seamlessly into Corbin Russwin 8000 Series Mortise and Rim Housings, it provides exceptional rekeying convenience, allowing non-technical personnel to perform rekeying without removing the hardware from the door. The interchangeable core is perfect for a wide range of applications, including office buildings, hotels, schools, hospitals, and universities. It streamlines key management, saving time and money throughout the lifespan of your facility. With all operating keys-change, master, and grand master-functioning normally, rekeying is simplified through a special control key that operates at a distinct shear line, making core removal and installation quick and hassle-free. Constructed from solid brass, the LFIC core is BAA qualified and made in the USA, ensuring high quality and reliability. Additionally, it is available in both 6-pin and 7-pin configurations, accommodating various security needs. With a limited warranty of one year and concealed key control options, the Corbin Russwin 8000-N4 is an ideal choice for those seeking efficient and secure locking solutions.
6-Pin LFIC Core N4 Keyway
6-Pin Interchangeable Core, N4 Keyway, Satin Chrome Finish
Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.
Interchangeable cores provide rekeying convenience for virtually all types of keying systems.
Interchangeable cores like thissavetime and money over the life of a building.
- Advantages
Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.
- Applications
IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.
- Operations
All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.
- Cores
Cores are available in 6-pin (standard), 7-pin, security and Pyramid.
- Construction Keying
Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.
- Core Marking
Concealed Key Control (CKC) is available for all Corbin Russwin cores.
Attributes
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: LFIC Core
Finish: 626/US26D
Finish Family: Matte Silver
Installation: Commercial
Keying: 0-Bitted
Keys: Blank
Limited Warranty: 1 Year
Of Keys: 2
Origin: USA
Pack Height: 2.5″
Pack Height 2: 6″
Pack Length: 2.75″
Pack Length 2: 16.25″
Pack Qty: 1
Pack Volume: 13.75 in³
Pack Volume 2: 1023.75 in³
Pack Width: 2″
Pack Width 2: 10.5″
Pins: 6
Series: Interchangeable Core Cylinders
Ship Weight: 0.2 lbs.
Std Keyway: N4
Subtype: LFIC Core
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 32
