Description

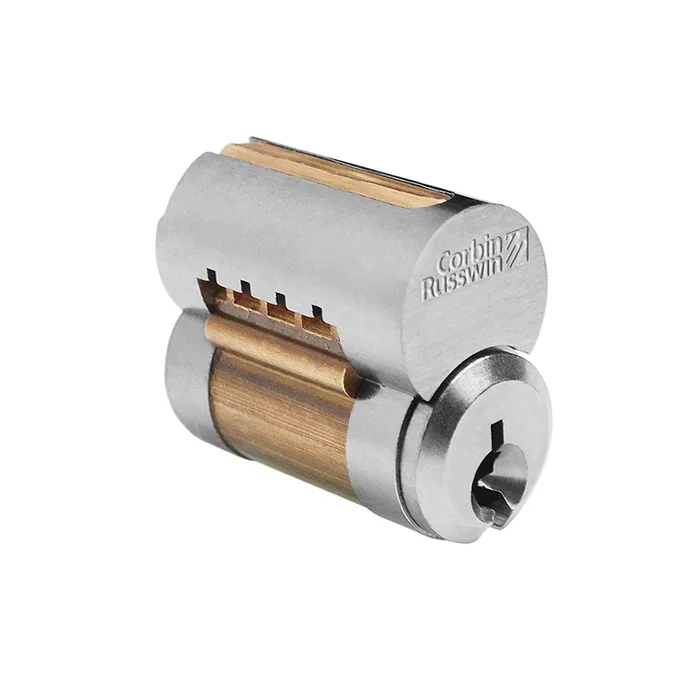

Corbin Russwin 8000-N7 626 6-Pin LFIC Core N7 Keyway
Corbin Russwin 8000-N7 626 6-Pin LFIC Core N7 Keyway offers a reliable and versatile solution for your locking needs. This interchangeable core features a 6-pin design and is crafted from solid brass, ensuring durability and longevity. The satin chrome finish not only enhances its aesthetic appeal but also provides a modern matte silver look that complements various commercial environments. Designed for easy rekeying, the Corbin Russwin 8000-N7 allows non-technical personnel to change the keying without removing the hardware from the door, saving time and labor costs. It is ideal for a wide range of applications, including office buildings, hotels, schools, hospitals, and universities. The core is compatible with both 6 and 7-pin configurations, making it adaptable to different keying systems. The unique control key mechanism operates at a separate shear line, facilitating core removal and installation without hassle. For added security, concealed key control (CKC) is available, along with the option for temporary construction cores. With a limited one-year warranty and a lightweight design of just 0.2 lbs., this product is a robust addition to any security system. Transform your locking systems with the efficiency and convenience of Corbin Russwin’s 8000-N7 LFIC Core.
6-Pin LFIC Core N7 Keyway
6-Pin Interchangeable Core, N7 Keyway, Satin Chrome Finish
Corbin Russwin Interchangeable Core Mortise and Rim Housings are made from soldi brass and are available to accept Corbin Russwin 8000 Series Interchangeable Cores in 6 or 7-Pin versions.
Interchangeable cores provide rekeying convenience for virtually all types of keying systems.
Interchangeable cores like thissavetime and money over the life of a building.
- Advantages
Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.
- Applications
IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.
- Operations
All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.
- Cores
Cores are available in 6-pin (standard), 7-pin, security and Pyramid.
- Construction Keying
Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.
- Core Marking
Concealed Key Control (CKC) is available for all Corbin Russwin cores.
Attributes
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: LFIC Core
Finish: 626/US26D
Finish Family: Matte Silver
Installation: Commercial
Keying: 0-Bitted
Keys: Blank
Limited Warranty: 1 Year
Of Keys: 2
Origin: USA
Pack Height: 2.5″
Pack Height 2: 6″
Pack Length: 2.75″
Pack Length 2: 16.25″
Pack Qty: 1
Pack Volume: 13.75 in³
Pack Volume 2: 1023.75 in³
Pack Width: 2″
Pack Width 2: 10.5″
Pins: 6
Series: Interchangeable Core Cylinders
Ship Weight: 0.2 lbs.
Std Keyway: N7
Subtype: LFIC Core
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 32
Resources
- Interchangeable Core Cylinders Cut Sheet
- Key Systems Catalog
- Video: Interchangeable Core Installation
