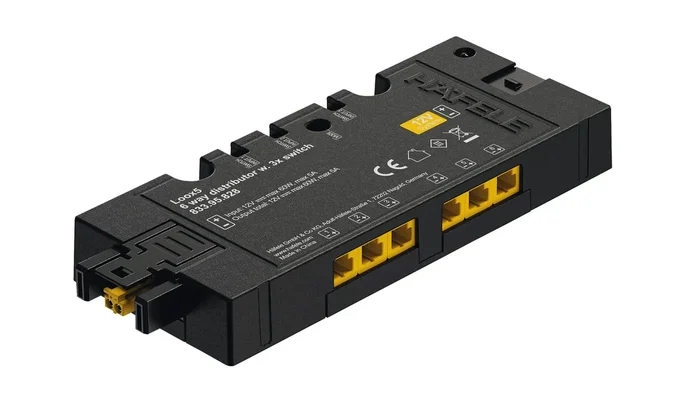

Hafele 833.95.828 Hafele Loox5 6-Way 12V Distributor with Multi-Switching Function
Hafele 833.95.828 6-Way Distributor is a versatile solution designed for the Hafele Loox5 lighting system, featuring a multi-switching function that accommodates up to three switches. This innovative distributor not only saves space but also reduces costs, making it an efficient choice for your lighting needs. With a power rating of 60 W and a compact dimension of 4 3/4″ x 2″ x 5/8″, it fits seamlessly into various applications. The distributor supports switching on/off and dimming from 0-100%, allowing for tailored lighting experiences. It includes six 2-pin 12 V output ports and three control input ports for Loox switches, enhancing the flexibility of your lighting arrangements. The device operates in three distinct modes: group connection, OR circuit, and digital cross-circuit, each indicated by a colored feedback LED for easy operation. Constructed from durable plastic and available in a sleek black finish, the Hafele 833.95.828 ensures both functionality and aesthetic appeal. It includes a memory function, preserving your last settings even in a currentless condition. Installation is straightforward, with options for glue fixing or screws, making it a reliable addition to any lighting project.
6-Way Distributor, Hafele Lighting with Multi-Switching Function, 12 V
60 W, 4 3/4″ x 2″ x 5/8″
Multi-switching function for up to 3 switches, saving space and cost 3 switching mode options Permanent soft on/off function, regardless of the switch that is used
Attributes
Area of application: For switching on/off and dimming (0-100%)
Cable length: 100.00 mm
Color system: monochrome
Color/finish: Black
Connected output ports: 6 x sockets, Loox 2-pin 12 V
Connections: 1 x socket, Loox5 2-pin 12 V box to box
Control input ports: 3 x sockets, Loox switch
Dim. ( L x W x H): 120 x 50 x 16 mm
Input ports: 1 x plug, Loox5 2-pin 12 V box to box
Installation: for glue fixing, With screws
Low voltage plug: Loox5 2-pin 12 V
Material: Plastic
Memory function: Yes (also in currentless condition)
Operation modes: 3 operating modes: Group connection (red feedback LED) Switch 1 = outputs 1 and 2 Switch 2 = outputs 3 and 4 Switch 3 = outputs 5 and 6 OR circuit (blue feedback LED) Switching on using switch 1, 2 or 3. To switch off, all switches that are switched on are operated again No dimmer may be used in the OR circuit operation mode! Digital cross-circuit (green feedback LED) Operate one switch (1, 2 or 3) to switch all outputs on/off
Power rating: 60.00 W
Standby power consumption: 0.11 W
Supplied with: 1 Distributor
Switching function: With multi-switching function
Version: Box to box, with switching function for up to 3 switches
Voltage: 12.00 V
Resources
- CAD data
- Hafele_Lighting_ 2024 | Page 258
- Installation instructions
- Installation instructions for 6-way distributor with 3 switches
- Instruction video | 6-way distributor with multi-switching function
- Loox5 Multi-Switch Distributor Sell Sheet EN
