Description
NGP 1000RA-10 60″ Anodized Aluminum Safety Seal for Double Doors
NGP 1000RA-10 60″ Anodized Aluminum Safety Seal for Double-Acting Doors offers a robust solution for enhancing door functionality and safety. Constructed from Aluminum Alloy 6063 in T5 Temper, this seal is designed to withstand the rigors of commercial use while ensuring excellent performance. Its synthetic EPDM rubber, embedded in a polypropylene thermoplastic matrix, delivers remarkable abrasion resistance, tensile strength, and memory, making it an ideal choice for high-traffic areas. With a temperature range of -20°F to 200°F, the NGP Safety Seal maintains its integrity across various environmental conditions. It is flame-resistant and moisture-resistant, providing an added layer of safety and durability. The seal effectively closes gaps at the heel of double-acting or center-pivoted doors, improving energy efficiency and enhancing the aesthetics of your space. Installation is simplified with slotted screw holes for adjustment, and #6 x 3/4″ stainless steel sheet metal screws are included for secure fastening. Available in a sleek black anodized aluminum finish, the NGP 1000RA-10 not only performs well but also complements any restroom design. Choose from 5″, 10″, or 16″ overall widths to fit your specific needs.
60″ Anodized Aluminum Safety Seal for Double-Acting Doors
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Good Resistance to Ozone, Sunlight and Aging
- Temperature Range -20°F to 200°F

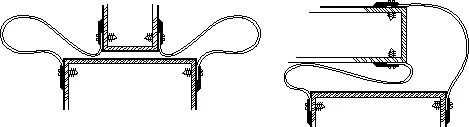

- Seals and Closes Gap at Heel of Double-Acting or Center Pivoted Doors
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
- 5″, 10″ or 16″ Overall Widths Available – Specify
- Color is Black
- Anodized Aluminum
- #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
- Screw Holes Slotted for Adjustment
Attributes
Color: Color is Black
Fasteners: #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Fire Rated: Flame-Resistant
Length: 60.0″
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Temperature Range: Temperature Range -20°F to 200°F
