Description
NGP 315DKB 60″ DKB Half Saddle Threshold, 1/4″ x 3″
NGP 315DKB 60″ DKB-finish Half Saddle Threshold is engineered for durability and compliance, making it an ideal choice for commercial restroom applications. Crafted from aluminum alloy 6063 with a T5 temper, this threshold measures 3″ wide and stands 1/4″ tall, offering a robust barrier while maintaining an elegant fluted top design. Weighing in at only .41 lbs./ft., it is lightweight yet sturdy, ensuring easy installation without compromising strength. This product comes with #10 x 1-1/2″ FH zinc plated wood screws, specifically designed for the dark bronze finish of the DKB thresholds, providing a cohesive look that blends seamlessly with various restroom aesthetics. Designed with accessibility in mind, the NGP 315DKB complies with ADA standards for accessible design. It meets multiple fire safety certifications, including UL certification for fire doors, making it suitable for high-traffic environments. The typical wall thickness of .125″ further enhances its structural integrity. For building professionals and homeowners alike, this threshold not only meets stringent safety standards but also elevates the overall design of your restroom partitions, ensuring both functionality and style. Choose NGP for reliable, high-quality restroom partition hardware that stands the test of time.
60″ DKB-finish Half Saddle Threshold, 1/4″ x 3″
- #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
- Fluted top

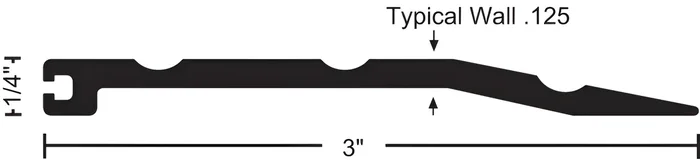

- Typical wall thickness .125″
- 3″ wide x 1/4″ tall
- Weight: .41 lbs./ft.
- Aluminum alloy 6063, T5 temper
- Dark bronze finish
Attributes
Dimensions: 3″ wide x 1/4″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Length: 60.0″
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Wall Thickness: Typical wall thickness .125″
Weight: Weight: .41 lbs./ft.
