NGP 9750C 60″ Fire Smoke Intumescent Seal
NGP 9750C 60″ Intumescent Fire and Smoke Seal offers an advanced solution for ensuring safety and compliance in commercial environments. Featuring the NGP-Edge® Sealing System, this product is classified for smoke and draft control, providing a reliable barrier against fire and smoke infiltration. The self-adhesive intumescent material expands at temperatures between 375°F to 400°F, sealing gaps around doors and enhancing fire protection. Designed to withstand a variety of conditions, the seal is moisture-resistant and features a rigid PVC base with a flexible elastomeric bulb. Its modified acrylic pressure-sensitive adhesive ensures high initial adhesion and long-term holding power, making it suitable for both interior and exterior applications. The NGP 9750C is also resistant to aging, weathering, UV radiation, and various chemicals, ensuring durability over time. With a temperature range of -60°F to 275°F, it accommodates diverse environmental conditions. The seal is suitable for 20, 45, 60, and 90-minute rated Category B wood doors, with a required 1/8″ clearance between the door and frame. Available in various lengths and a chic charcoal color, it combines functionality with aesthetics, making it an excellent choice for professional spaces.
60″ Intumescent Fire and Smoke Seal
- NGP-Edge® Sealing System/Smoke and Draft Control Gasketing Category “G” and “H” Classified
- Flame resistant
- REACH and RoHS compliant
- Modified acrylic pressure sensitive adhesive protected by release liner
- Available in 36″, 48″, 84″, 96 and 108″ lengths
- Self-Adhesive Intumescent
- Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
- Temperature range -60°F to 275°F
- Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
- 1/8″ clearance required between door and frame

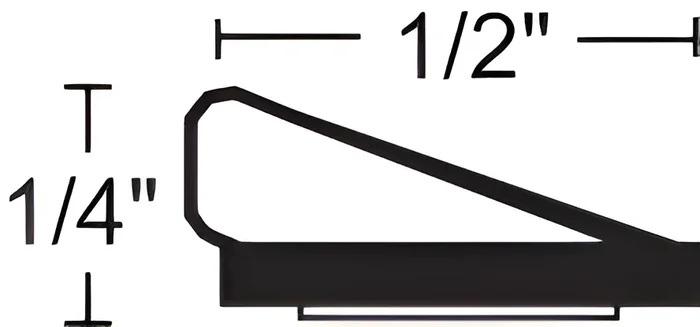

- 1/2″ wide x 1/4″ tall
- Rigid PVC base with flexible elastomeric bulb
- NGP Intumescent materials are formulated to expand at 375°F to 400°F up to 8-10 times their original thickness; completely sealing the gap around and between doors during a fire
- Moisture resistant
- Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
- End use temperature range of adhesive, long term exposure -30°F up to 250°F
- 20, 45, 60, 90 minute rated category B wood doors perimeter application up to: single swing 4’0 x 9’0, pairs 8’0 x 9’0
- Charcoal
Attributes
Color: Charcoal
Dimensions: 1/2″ wide x 1/4″ tall
Fire Rated: 20, 45, 60, 90 minute rated category B wood doors perimeter application up to: single swing 4’0 x 9’0, pairs 8’0 x 9’0
Length: 60.0″
Moisture Resistant: YES
Resistance: Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
Ro HS: REACH and RoHS compliant
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: NGP-EDGE® SEALING SYSTEM. Certified by UL to ANSI/UL10C Category ‘G’; required for Category B wood fire doors to meet positive pressure requirements complying with IBC, and NFPA 252. See individual products for maximum door size and ratings.
Temperature Range: Temperature range -60°F to 275°F
