Description
NGP 884-7N 60″ Mill Aluminum Extended Width Bumper Seal Threshold – NGP-TPV 7/8″ x 7″
NGP 884-7N 60″ Mill Aluminum, Extended Width Bumper Seal Threshold is designed to provide a robust and efficient barrier for commercial restroom applications. Crafted from durable aluminum alloy 6063 with a T5 temper, this threshold measures 7″ wide and stands 7/8″ tall, ensuring a reliable fit for various door types.The fluted top design not only enhances aesthetic appeal but also contributes to functionality by helping to deflect water and debris, maintaining a cleaner environment. Weighing 1.31 lbs./ft., this product is both lightweight and sturdy, making installation straightforward. Accompanied by #10 x 1-1/2″ zinc-plated wood screws, the NGP 884-7N supports quick and secure mounting, with dark bronze options available for DKB thresholds. This threshold meets stringent safety standards, certified by UL to comply with NFPA 80 and NFPA 252 for fire-rated doors, accommodating hollow metal fire doors rated up to 3 hours and wood fire doors up to 90 minutes. Additionally, it has been air infiltration tested to ASTM E283, ensuring optimal performance in preventing air leakage. The mill finish offers a sleek, professional look, making the NGP 884-7N an excellent choice for any commercial restroom setting.

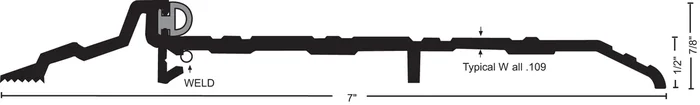

60″ Mill Aluminum, Extended Width Bumper Seal Threshold – NGP-TPV, 7/8″ x 7″
- Mill finish
- Fluted top
- Weight: 1.31 lbs./ft.
- Typical Wall Thickness: .109″
- #10 x 1-1/2″ FH zinc plated wood screws furnished. Dark bronze supplied with DKB thresholds
- NGP-TPV is black
- Aluminum alloy 6063, T5 temper
- 7″ wide x 7/8″ tall
Attributes
Color: NGP-TPV is black
Dimensions: 7″ wide x 7/8″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws furnished. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Length: 60.0″
Material: Aluminum alloy 6063, T5 temper
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Wall Thickness: Typical Wall Thickness: .109″
Weight: Weight: 1.31 lbs./ft.
