Description
NGP 2525C 60″ Self-Adhesive Silicone Bulb Smoke Seal
NGP 2525C 60″ Self-Adhesive Silicone Bulb Smoke Seal offers a robust solution for sealing gaps in commercial restroom partitions, ensuring an effective barrier against smoke and air infiltration. Crafted from high-quality synthetic rubber polymer, Siloxane, this smoke seal boasts excellent flexibility and memory, maintaining its shape and effectiveness even under extreme conditions.Designed to withstand temperatures ranging from -100°F to 500°F, the seal remains functional in both hot and cold environments. Its flame and moisture-resistant properties make it ideal for areas utilizing FM200 or Halon Fire Suppression Systems. The product is BHMA certified to ANSI/BHMA A156.22, guaranteeing top performance in heat, cold, and smoke infiltration tests. With a size of 3/8″ wide by 1/4″ tall, the NGP 2525C is available in convenient lengths, including 17′, 20′, 21′, 25′, and a generous 300′ roll, all in a sleek charcoal color. The modified acrylic pressure-sensitive adhesive ensures high initial adhesion and long-term holding power, making installation straightforward and reliable. Suitable for both interior and exterior applications, this smoke seal is an indispensable component for maintaining safety and compliance in commercial restroom environments.
60″ Self-Adhesive Silicone Bulb Smoke Seal
- Excellent flexibility and memory
- Flame resistant
- Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicalsEnd use temperature range of adhesive, long term exposure -30°F up to 250°F
- Synthetic rubber polymer: Siloxane
- Modified acrylic pressure sensitive adhesive protected by release liner
- Self-Adhesive Silicone
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
- Excellent resistance to ozone, UV and aging
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
- Available in 17′, 20′, 21′, 25′, 300′ rolls
- Moisture resistant
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations

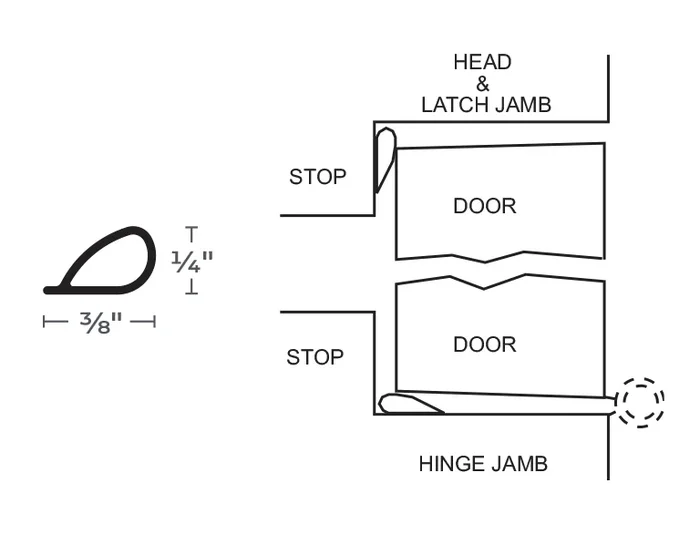

- 3/8″ wide x 1/4″ tall
- Charcoal
- Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Adhesive and Energy Performance
- End use temperature range of adhesive, long term exposure -30°F up to 250°F
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
Color: Charcoal
Dimensions: 3/8″ wide x 1/4″ tall
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 60.0″
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicalsEnd use temperature range of adhesive, long term exposure -30°F up to 250°F
