Description

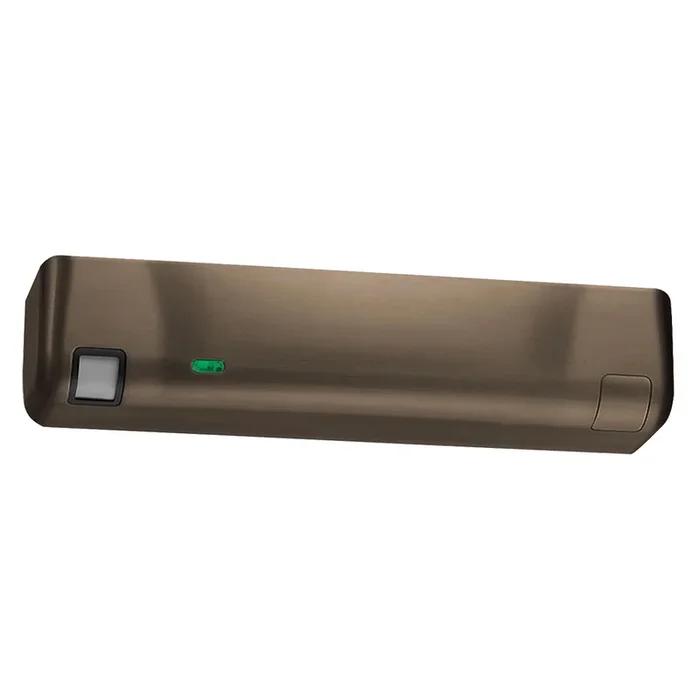

Securitron M380EBDX 613E Maglock
The Securitron M380EBD and M380EBDX models offer additional integrations, such as Securitrons patented BondSTAT lock sensor, Door Position Switch, built-in door prop sensing (which allows the magnet to de-energize the coil when the door is held open for extended periods), and a passive infrared request to exit (PIR REX)
Attributes
Amp Draw: 585 mA at 12 VDC, 310 mA at 24 VDC
Ansi: ANSI/BHMA A156.23
Commercial Residential: Commercial
Current 12v DC (m A): 585
Current 24v DC (m A): 310
Finish: 613E Dark oxidized satin bronze-equivalent
Finish : Dark Oxidized Bronze
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: Yes {Variable}
Function: Electrically Locked (Fail Safe)
Grade: Grade 3
Holding Force: 600
Holding Force (lbs): 600
Installation: Commercial
Lights: LED Indicator
Limited Warranty: Lifetime
Magnet Depth (in): 2.4375
Magnet Height (in): 2.1875
Magnet Length (in): 10
Magnet Size: 10″ x 2-3/16″
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Operating Voltage: 12VDC/24VDC
Options: PIR Request to Exit
Outdoor Rated: No
Pack Qty: 1
Preload Capable: Yes
Series: Securitron Smart Magnalocks
Ship Weight: 6.5 lbs.
Subtype: Maglock
Switch Type: MBS/DPS
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034, 294
Unit of Measure: Each
Voltage: 12/24
