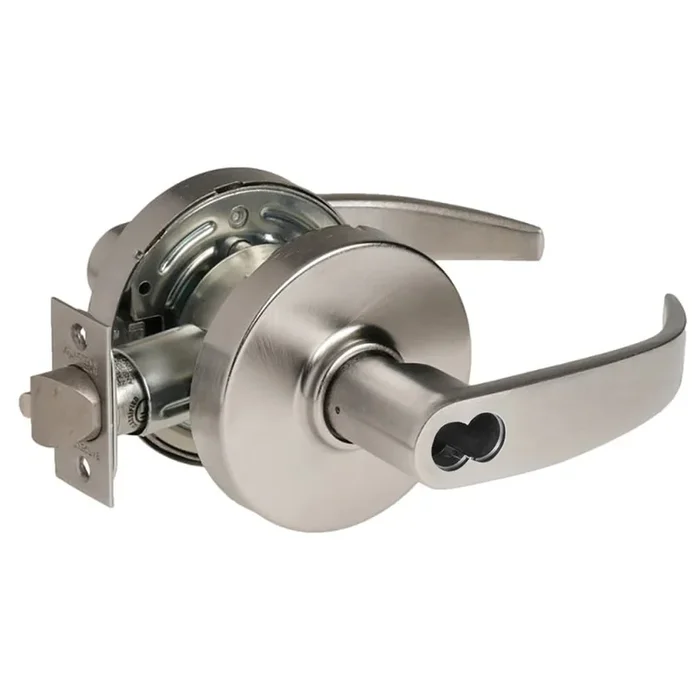

Sargent 2860-7G04 LP 26D Cylindrical Lock
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability
Attributes
Alternate Codes: 28-60-7G04LP26D, 28607G04LP26D
Ansi: F86
Ansi Function: F86 – Storeroom
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bolt Protection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 8-1/4″
Box Height Fraction: 4-1/4″
Box Width Fraction: 6-7/8″
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: Sargent LFIC Less Core
Cylinders Present: Single Cylinder
Door Application: Cylindrical Levers
Door Thickness: 1-3/8″ – 1-3/4″
Dust Box: None
Finish: 626/US26D
Finish Code: 26D
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: 3 Hours {A}
Function: 04-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 2
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Bore Diameter: 7/8″
Latch Number: 07-2430
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: P – Lever
Lever Knob Design Name: P
Leverknob Design: P Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 2-1/4″ x 1-1/8″
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/4″
Origin: United States
Pack Height: 4.25″
Pack Height 2: 9″
Pack Length: 8.25″
Pack Length 2: 20.75″
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88″
Pack Width 2: 15″
Pins: 6
Product Height: 4.25″
Product Length: 8.25″
Product Width: 6.88″
Projection: 2-1/2″
Rose Escutcheon: Rose
Rose Escutcheon Design: L – Rose
Roseescutcheon Design: 3-3/8″ Rose Diameter
Roseescutcheon Dimensions: 3-3/8″
Screws: Combination
Series: 7-Line Bored Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 193762
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
