Description

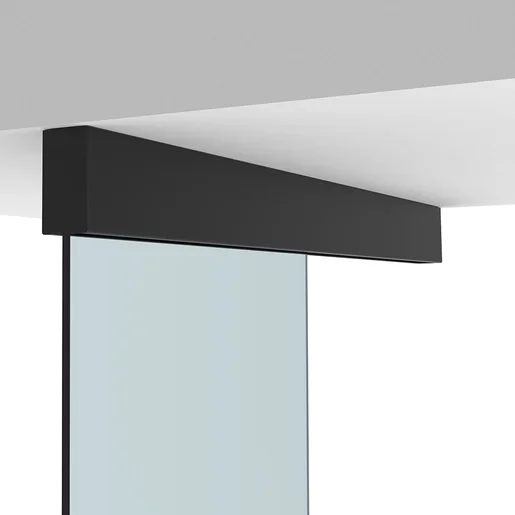

CRL 70CMBL Matte Black Single Sliding Door Ceiling Mount Kit
C.R. Laurence 70CMBL 70 Matte Black Series Single Sliding Door Ceiling Mount Kit is designed for seamless integration with tempered glass doors, accommodating thicknesses from 5/16″ to 1/2″ (8 to 12 mm). This kit supports doors weighing up to 275 pounds (125 kg) and offers a maximum door width of 59″ (1.5 m), making it ideal for both residential and commercial applications. The 70CMBL kit includes all necessary components for installation, excluding the tempered glass, ensuring a straightforward setup. It features a sleek matte black finish that adds a modern touch to any space, while optional powder coating or architectural cladding is available for a custom look. The top-hung design allows for smooth operation and unobstructed access. It’s important to note that all users must consult a structural engineer to verify the product’s suitability for their specific conditions. Additionally, qualified installers should ensure compliance with local regulations and safety standards during installation. The glass must be wet glazed, similar to other channel installations, to ensure a secure fit. Enhance your interior with the durability and style of the C.R. Laurence 70CMBL Single Sliding Door Ceiling Mount Kit, engineered for both functionality and aesthetic appeal.
70 Matte Black Series Single Sliding Door Ceiling Mount Kit
- For 5/16″ to 1/2″ (8 to 12 mm) Tempered Glass
- Use Monolithic Tempered Glass
- Can Accommodate Doors Weighing Up to 275 Pounds (125 kg), Maximum Door Width of 59″ (1.5 m)
There are three configurations of CRL70 Series Kits for single glass doors mounting to a structural ceiling. All come with everything you need (except the tempered glass) to complete the installation. Kits are available in a satin anodized finish, with an option for powder paint or cladding in any architectural finish desired.
Product Warning:
STRUCTURAL DISCLAIMER – All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Glass to be wet glazed similar to other channel installations.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Ship via: No UPS – Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in. (10 mm)
Glazing Type: Tempered Insulated
Maximum Panel Weight: 275 lbs. (125 kg)
Mounting Application: Ceiling
Shipping Limitations: None
Top Hung: Yes
Track Length: 118 in. (2997 mm)
Resources
- CRL70 Series Installation Instructions
