Description

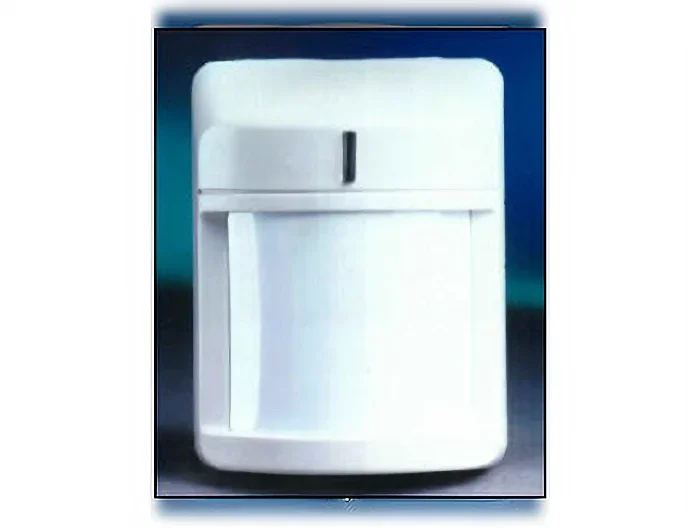

Napco Security PIR1710 70ft x 60ft Lookdown ASIC PIR
Napco Security Alarm PIR1710 70ft x 60ft Lookdown ASIC PIR is an advanced passive infrared motion detector designed for reliability and optimal intruder detection. This versatile unit boasts a broad coverage range of 70 feet by 60 feet, ensuring comprehensive protection for residential and moderate commercial settings. Its unique look-down creep zone catches intruders directly beneath the sensor, enhancing security. Equipped with state-of-the-art features, the PIR1710 employs automatic signal selective processing (SSP) to adjust sensitivity based on environmental conditions, minimizing false alarms. The detector also offers bipolar 2-pulse processing for those who prefer manual settings. With custom-engineered aspheric optics, installation is straightforward, and the detector can be fine-tuned for optimal field-of-view. Designed to withstand various challenges, the PIR1710 provides superior RFI, EFI, and lightning protection, ensuring reliable performance. Its automatic temperature compensation adapts to seasonal changes, guaranteeing accurate detection year-round. Fast mounting options allow for easy installation on walls or in corners. With a 5-year warranty, the PIR1710 not only offers peace of mind but also features tamper supervision to deter vandalism. Choose Napco Security Alarm PIR1710 for a dependable, high-performance security solution.
70ft x 60ft Lookdown ASIC PIR
Notice: The info below is not item specific.
The field-proven PIR1710 passive infrared motion detector offers advanced NAPCO sensor technology for increased reliability and intruder “catch” performance. With a 70’ x 60’ broad coverage range and look-down creep zone that provides detection coverage directly beneath the sensor, the PIR1710 offers excellent protection for virtually any application. Other enhanced false alarm prevention features include, automatic SSP signal selective processing for the easiest and most stable of installations, temperature compensation, white light protection and RFI/EFI shielding, combining to make the PIR1710 a natural fit for every residential or moderate commercial application, large or small.
Features:
- Generous range suitable for most residential & commercial installations: 70’ x 60’ (21.3 x 18.3m) range @ 200 C (680 F), typical
- Look-down/creep zone provide detection zones directly beneath the sensor for inescapable intruder “catch”
- Increased stability with automatic sensitivity selection PIR1710’s S.S.P. (signal selective processing) circuitry enables the unit to analyze incoming signals and adjust its sensitivity to provide the optimal sensitivity setting depending upon the harshness of its application environment, for automatic false alarm rejection.
- Bipolar 2-pulse processing option For those preferring traditional, manual settings, 2-pulse count processing can be manually selected.
- Optimized field-of-view with custom-engineered aspheric optics Napco’s Fresnel lenses are carefully designed to provide the ideal lens array and are easily-aimable during installation. (Additional field-changeable lenses available: Barrier, long range, pet alley.)
- Superior RFI-/EFI-/lightning-shielded protection Key components and resilient SMD circuitry are electronically shielded to 20V/m. This protects the unit’s proper performance from nuisance interference due to static discharge, power surges, electric spikes, etc.
- Critical range control the PIR1710 enables customizable range with a calibrated adjustable potentiometer to fine-tune range during walk-test, if desired.
- Automatic temperature compensation the unit’s circuitry automatically adjusts for seasonal and climate variances, providing accurate detection despite extremes of heat or cold.
- Fast, flexible mounting The detector is conveniently installed on walls or in a corner and may be more precisely aimed horizontally or vertically, by repositioning the PCB within the enclosure for a full range of coverage. Large wiring channel, generous terminal strip and captive PCB screw, combine for fast, trouble-free, neat installations every time.
- Tamper/vandalism supervision defeats acts to sabotage or vandalize the unit by reporting them to the system if opening the enclosure is ever attempted.
- Added false alarm prevention features The unit employs myriad features to ensure only valid alarms are reported in the system saving time and money. This includes properties of its circuitry and Fresnel optics, which include integral extra white light protection, a Napco-pioneered innovation.
- 5 year warranty Napco stands behind all of its sensors with an unsurpassed 5 year warranty, for your added peace-of-mind.
Specifications:
- Operating temperature: -10 to +50 degrees C (14 º to 122º F)
- Mounting: Wall or corner, 12’ (3.6m) max. (optional SVL2 Swivel Bracket can be used for pattern aiming and for mounting heights above 12 ft. (3.6m)
- Output relay: Form A; normally closed
- Relay time: Approx. 3 seconds
- Alarm Relay: 100mA, 24Vdc with internal 10 ohm current limiting resistor
- Power supplyrequirements: 10.6 to 16VDC nominal with battery backup form the control panel.
- Current drain: 23mA (idle/alarm) at 12VDC (nominal); 33mA (idle or alarm ) at 16VDC (nominal); 44mA (trouble condition) at 16VDC (nominal)
- Dimensions: 3.3″H x 2.5″W x 1.9″D (8.4 x 6.4 x 4.8cm) (HxWxD)
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: 130506, PIR1710
Category: Access Control, Alarms & Intercom, Burglar Alarms, Switches, Sensors & Contacts
Part Type: Detectors
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Style: Motion Sensor
