Description

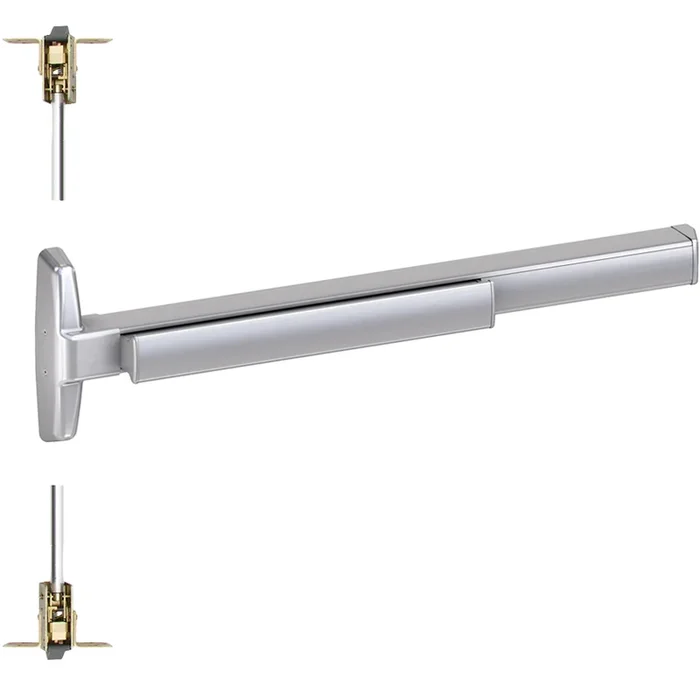

Von Duprin 7547EO-F-626-48 75 Series Fire-Rated CVR Exit Device, No Dogging, 48in x 84in, Satin Chrome
Von Duprin 7547EO-F-626-48 is a robust fire-rated CVR (Concealed Vertical Rod) exit device designed to provide reliable emergency egress while ensuring safety in commercial environments. Certified to ANSI/BHMA A156.3 2014, Grade 1, and UL listed for fire exit hardware, this exit device is a dependable choice for modern building requirements. Measuring 48 inches in length, the device accommodates door sizes from 2′ 6″ to 4′ wide, making it adaptable to various installations. Its sleek satin chrome finish (626/US26D) not only enhances aesthetics but also offers durability against wear and tear. The deadlocking latch bolt with a 5/8″ throw ensures secure closure, while the pushbar design facilitates quick exit in emergencies.This model is field-selectable for device functions, allowing for customization based on your specific needs, and the centerline installation height of 39-13/16″ (1011mm) makes it user-friendly. Additionally, it supports optional electrified features such as a latch bolt monitor switch and request-to-exit functionality.With its narrow stile design and compatibility with aluminum frames, the Von Duprin 7547EO-F-626-48 is an excellent choice for ensuring safety and compliance in any commercial setting.
75 Series Fire-Rated CVR (Concealed Vertical Rod) Exit Device, No Dogging, No Trim, 48in x 84in, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
7547-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware.
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- Device lengths:
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Device centerline from finished floor:
- 39-13/16″ (1011mm)
- 39-11/16″ (1008mm) with mullion
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- Projection:
- Pushbar neutral – 3-13/16″ (97mm)
- Pushbar depressed – 3-1/16″ (78mm)
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- E: Electric locking and unlocking trim; no cylinder override
- ALK: Quiet electric latch retraction
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Mechanical Options:
- GBK: Glass bead kit
- LBR: Less bottom rod
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging Options: No mechanical dogging
- Strikes:
- 388: Top—unfinished
- 385A: Bottom—unfinished
Trim Functions:
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- EO: Exit only
- L: Lever (classroom). Key locks and unlocks; or key unlocks, then relocks when key is removed. 1-1/4″ mortise cylinder. Handed, reversible lever
- L-BE: Lever – blank escutcheon. Always operable (no cylinder). Electrified lever operation available
- L-DT: Lever, rigid – dummy trim. Pull when dogged
- L-NL: Lever, rigid – night latch
- NL: Night latch. Key retracts. Rim cylinder
- NL-OP: Night latch cylinder assembly, optional pull. Key retracts latch bolt, optional pull required. Rim cylinder
- TL: Turn lever. Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim). 1-1/4″ mortise cylinder
- TL-BE: Turn lever – blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 628 – Aluminum, anodized
- 630 – Satin stainless steel
- 643e – Aged bronze
- 710 – Dark brown, anodized
- 711 – Matte black
Features
- Projection:
- 39-13/16″ (1011mm)
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- RX: Request to exit
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- GBK: Glass bead kit
- Dogging Options: No mechanical dogging
- Device Functions: Device ships EO/DT/NL; field selectable
- SNB: Sex bolts
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Device lengths:
- Mechanical Options:
- Pushbar neutral – 3-13/16″ (97mm)
- Electrified Options:
- LX: Latch bolt monitor switch
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- E: Electric locking and unlocking trim; no cylinder override
- Strikes:
- ALK: Quiet electric latch retraction
- 388: Top—unfinished
- Pushbar depressed – 3-1/16″ (78mm)
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- Device centerline from finished floor:
- 385A: Bottom—unfinished
- SEC: Security screws
- LBR: Less bottom rod
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- 39-11/16″ (1008mm) with mullion
- WH: Weep holes
Attributes
Alternate Codes: 7547EO-F-626-48, 7547EOF62648
Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks
Center Line: 3′ 3-13/16″
Certifications: A156.3, ANSI, ANSI/UL 10C, BHMA, UL 305, ULC-S104
Device Width: 48″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Aluminum Frame
Door Thickness: 1-3/4″
Door Type: Aluminum
Exit Device Category: Concealed Vertical Rod Exit CVR
Fasteners: Sex Bolts
Finish Code: 626, 630
Finish Color: Brushed Chrome, Satin Chrome, Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Function: Exit Only
Grade: Grade 1
Handing: Field Reversible
Manufacturer: Von Duprin
Series: 75
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stile Width: Narrow Stile
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
