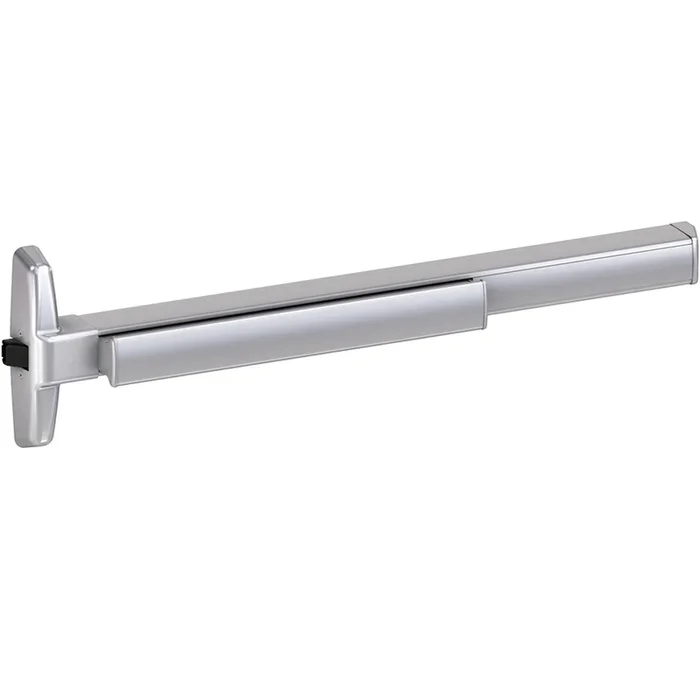

Von Duprin 75EO-F-626-48 75 Series Fire-Rated Rim Exit Device, No Dogging, 48in, Grade 1, Satin Chrome
Von Duprin 75EO-F-626-48 75 Series Fire-Rated Rim Exit Device offers a robust solution for fire safety and emergency egress. This exit device is certified to ANSI/BHMA A156.3 2014, Grade 1, and is UL listed for fire exit hardware, ensuring reliability and compliance in critical situations. Designed for doors ranging from 2′ 6″ to 4′ wide, it features a sleek satin chrome finish that adds a polished look while maintaining durability. With a center case measuring 9″ x 1-5/8″ x 2-3/8″, the device is engineered for easy installation and operation. Its deadlocking latch bolt provides a secure closure with a 5/8″ throw, while the pushbar design ensures quick exit access. The device has a projection of 3-13/16″ when neutral and 3-1/16″ when depressed, making it user-friendly for both pedestrians and emergency personnel. Additional features include field-selectable functions (EO/DT/NL) and a variety of optional electrified and mechanical accessories, allowing for customization to meet specific security requirements. This exit device is suitable for use in narrow stile doors, making it ideal for commercial settings where safety and aesthetics are equally important. The Von Duprin 75EO-F-626-48 is a reliable choice for any fire-rated exit application.
75 Series Fire-Rated Rim Exit Device, No Dogging, No Trim, 48in, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
75-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware.
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- Device lengths:
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Device centerline from finished floor:
- 39-13/16″ (1011mm)
- 39-11/16″ (1008mm) with mullion
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- Projection:
- Pushbar neutral – 3-13/16″ (97mm)
- Pushbar depressed – 3-1/16″ (78mm)
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- E: Electric locking and unlocking trim; no cylinder override
- ALK: Quiet electric latch retraction
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Mechanical Options:
- AX: Accessible device
- GBK: Glass bead kit
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging Options: No Mechanical dogging
- Strikes:
- 299F: Dull black
- 499F: With mullion
Trim Functions:
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- EO: Exit only, No outside
- L: Lever (classroom). Key locks and unlocks; or key unlocks, then relocks when key is removed. 1-1/4″ mortise cylinder. Handed, reversible lever
- L-BE: Lever – blank escutcheon. Always operable (no cylinder). Electrified lever operation available
- L-DT: Lever, rigid – dummy trim. Pull when dogged
- NL: Night latch. Key retracts, rim cylinder
- NL-OP: Night latch cylinder assembly, optional pull. Rim cylinder
- TL: Turn lever. Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim). 1-1/4″ mortise cylinder
- TL-BE: Turn lever – blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 628 – Aluminum, anodized
- 630 – Satin stainless steel
- 643e – Aged bronze
- 710 – Dark brown, anodized
- 711 – Matte black
Features
- Projection:
- 39-13/16″ (1011mm)
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- RX: Request to exit
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- GBK: Glass bead kit
- AX: Accessible device
- Device Functions: Device ships EO/DT/NL; field selectable
- SNB: Sex bolts
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- 299F: Dull black
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Device lengths:
- Mechanical Options:
- Pushbar neutral – 3-13/16″ (97mm)
- Electrified Options:
- LX: Latch bolt monitor switch
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- E: Electric locking and unlocking trim; no cylinder override
- Dogging Options: No Mechanical dogging
- Strikes:
- ALK: Quiet electric latch retraction
- Pushbar depressed – 3-1/16″ (78mm)
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- Device centerline from finished floor:
- SEC: Security screws
- 499F: With mullion
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- 39-11/16″ (1008mm) with mullion
- WH: Weep holes
Attributes
Alternate Codes: 75EO-F-626-48, 75EOF62648
Category: Glass Aluminum Hardware, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Center Line: 3′ 3-13/16″
Certifications: A156.3, ANSI, ANSI/UL 10C, BHMA, UL 305, ULC-S104
Device Width: 48″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Hollow Metal Frame
Door Thickness: 1-3/4″
Door Type: Hollow Metal
Exit Device Category: Rim Exit
Fasteners: Sex Bolts
Finish Code: 622, 626, 630
Finish Color: Black, Brushed Chrome, Flat Black, Flat Black Coated, Matte Black, Satin Chrome, Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Function: Exit Only
Grade: Grade 1
Handing: Field Reversible
Manufacturer: Von Duprin
Series: 75
Stile Width: Narrow Stile
Strike Type: Fire Rated Rim Strike
