Description

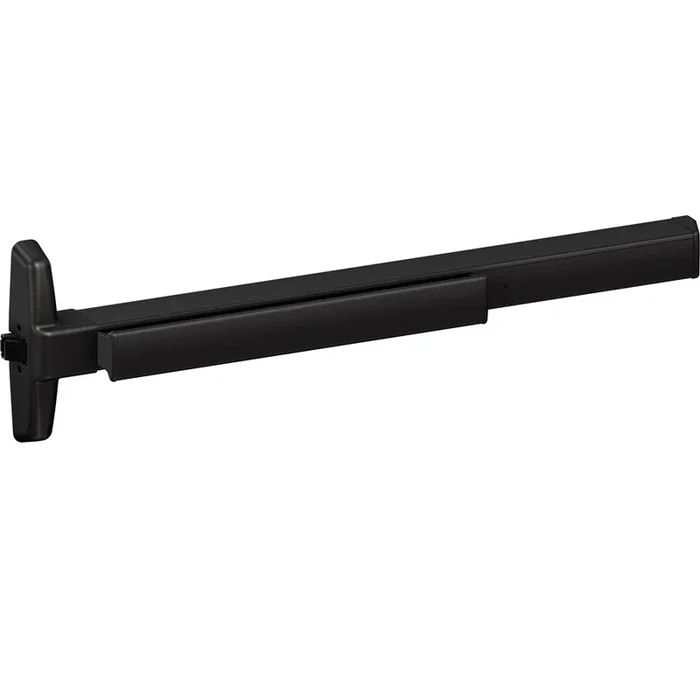

Von Duprin 75EO-711-36 75 Series Rim Exit Device, No Trim, 36in, Grade 1, Flat Black
Von Duprin 75EO-711-36 75 Series Rim Exit Device is engineered to deliver exceptional reliability and security for various applications, including warehouses, offices, and retail spaces. This exit device features a sleek narrow stile design, emphasizing both functionality and aesthetics. Constructed with ANSI/BHMA Grade 1 certification, it ensures robust performance backed by Allegion’s trusted services and support. Available in a striking flat black powder-coated finish, the 75EO-711-36 model offers versatile options for both single and double door configurations, accommodating door sizes ranging from 2’6″ to 4′. Its field-selectable functions allow you to customize operation, while the deadlocking latch bolt with a 5/8″ throw guarantees secure closure. Designed for convenience, the device is shipped with a comprehensive screw pack for easy installation on 1-3/4″ and 2-1/4″ thick doors. Additionally, it can be equipped with optional electrified features such as latch bolt monitoring and quiet electric latch retraction, ideal for environments where noise reduction is a priority. The Von Duprin 75EO-711-36 is the perfect blend of security and style, ensuring safety without compromising on design, making it an excellent choice for any commercial or residential setting.
75 Series Rim Exit Device, No Trim, 36in, Grade 1, 711/US19 Flat Black Powder-Coated
Notice: The info below is not item specific.
Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 75 exit device is a narrow stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes. 70 Series also can be configured with the Quiet Electric Latch Retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired. Plus, quick shipping is an option for time-sensitive projects.
Features:
- ANSI/BHMA Grade 1 certified and backed by Allegion services and support
- Available in a wide range of device types, options, lever designs, and finishes
- Available in 3′ and 4′ lengths that are field sizeable for single and double door applications
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable
- Center Case: 9″ x 1-5/8″ x 2-3/8″ (229mm x 41mm x 60mm)
- Device lengths:
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Device centerline from finished floor:
- 39-13/16″ (1011mm)
- 39-11/16″ (1008mm) with mullion
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- Projection:
- Pushbar neutral – 3-13/16″ (97mm)
- Pushbar depressed – 3-1/16″ (78mm)
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- E: Electric locking and unlocking trim; no cylinder override
- ALK: Quiet electric latch retraction
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Mechanical Options:
- AX: Accessible device
- GBK: Glass bead kit
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging Options:
- Hex key dogging standard
- CD: Cylinder dogging
- LD: Less dogging
- QEL: QEL options available
- Strikes: 1439: Dull black
Trim Functions:
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- EO: Exit only, No outside
- L: Lever (classroom). Key locks and unlocks; or key unlocks, then relocks when key is removed. 1-1/4″ mortise cylinder. Handed, reversible lever
- L-BE: Lever – blank escutcheon. Always operable (no cylinder). Electrified lever operation available
- L-DT: Lever, rigid – dummy trim. Pull when dogged
- NL: Night latch. Key retracts, rim cylinder
- NL-OP: Night latch cylinder assembly, optional pull. Rim cylinder
- TL: Turn lever. Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim). 1-1/4″ mortise cylinder
- TL-BE: Turn lever – blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 628 – Aluminum, anodized
- 630 – Satin stainless steel
- 643e – Aged bronze
- 710 – Dark brown, anodized
- 711 – Matte black
Attributes
Alternate Codes: 75EO-711-36, 75EO71136
Category: Glass Aluminum Hardware, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Center Line: 3′ 3-13/16″
Certifications: A156.3, ANSI, BHMA, UL 305
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Aluminum Frame
Door Thickness: 1-3/4″
Door Type: Aluminum
Exit Device Category: Rim Exit
Fasteners: Sex Bolts
Finish Code: 622, 711
Finish Color: Black, Flat Black, Flat Black Coated, Matte Black
Function: Exit Only
Grade: Grade 1
Handing: Field Reversible
Manufacturer: Von Duprin
Series: 75
Stile Width: Narrow Stile
Strike Type: Rim Strike
